ACIERA (CH) 23 TR 50
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Metzingen | Baden-Württemberg |
| Category: | Further Drilling Machines |
| Manufacturer: | Gehring |
| Model: | M 3-40-12 |
| Year of Make: | 1984 |

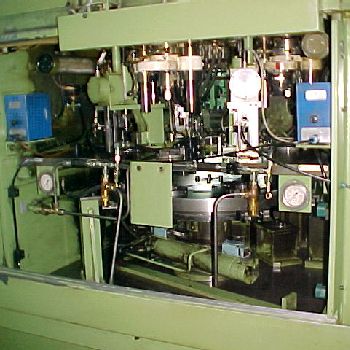

| Description: | · Machine is equipped for the precision honing of a valve body approx. Æ12 x 40 mm high, with a blind hole of approx. Æ8mm x 20 mm, consisting of: · BOSCHSPS control for programmable working sequence u. Cylindromatic "S" -Control. · 8 stations - rotary indexing table, type DH 750-45, approx. Æ 750 mm · I load the workpieces via a chute, even outside the table area there is a deburring station, pre-measuring station and a part-turn station · Pre-honing with subsequent measuring station · Intermediate honing with subsequent measuring station · finished honing with subsequent measuring station · workpiece unloading and sorting for good and bad parts · MAZ - 8-42 Mechanical automatic delivery heads for honing of bristles · The 3 measuring stations work by means of an air measuring mandrel, which enters the bore and if necessary. · Complete refrigeration oil system with band filter, separate control cabinet, sep. Hydraulic, etc.Condition: good to very good - soon to be presentedDelivery: fr |
Hans-Jürgen Geiger Maschinen-Vertrieb GmbH James-Watt-Straße 12D-72555 MetzingenGermany SHOW |
