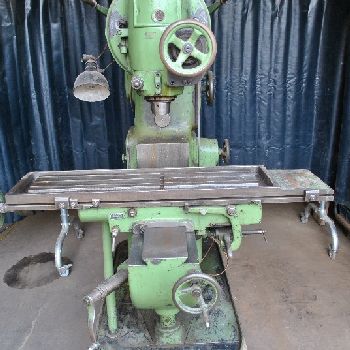

Milling Machine - Vertical WERNER, FRITZ 231
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Göppingen |
| Category: | Further Milling Machines |
| Manufacturer: | Werner |
| Model: | 231 |
| Year of Make: | 1965 |
| Description: | Specifications: This machine x uses the same knee and table arrangement as the horizontal type 2,201 table 1100 mm with 310 mm, using concentrated feed, travels from 650 mm in the longitudinal direction, 235 mm in the cross arm and 425 mm vertically. The longitudinal and transverse 16 feeds was 10 to 300 mm per minute and vertical 5-150 mm. 18 spindle speeds were present spans 34-635 min or optionally 80 to 1500 revolutions per minute. Drive came from a 8.8-horsepower motor and the machine weighed about 2200 kg. |
