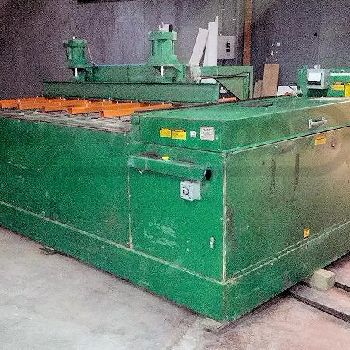

TYLER 2400
$ 40,000
| Type: | Buy-It-Now |
| Location: | United States | Southeast | New York |
| Category: | Multi-Blade Saws |
| Manufacturer: | Tyler |
| Model: | 2400 |
| Year of Make: | 1984 |
| Description: | TYLE 2400 SLAT-WALL MACHINE: \n\n-- Specifications: Produces T-slots "Slat-Wall" for architectural/store fixture panels. 48" x 97" Max. panel capacity., 24" x 24" min. cap., panel thickness 0.5" to 1.5"; Machine capable of processing up to (40) panels/Hr, depending on material density, thickness and the slot profile. \n\n-- Equipped with: This machine is currently set up with (17) router spindles on 3" centers, Spindles are driven in groups of (3) with (6) 7.5 HP - 3,450 RPM motors that drive the (17) router spindles, all router spindles rotate @ 15,400 RPM. This machine can accept up to (21) router spindles & the additional spindles can be activated by adding (1) additional 7.5 HP - 3,450 RPM motor. \n\n-- Machine Operating Sequence: Panels remain stationary on top, pneumatically clamped in place while the bottom mounted router bank traverses the full length of the panel with a high speed return, Variable feed speed control, router assembly traverses on ground & polished rails with ch |
