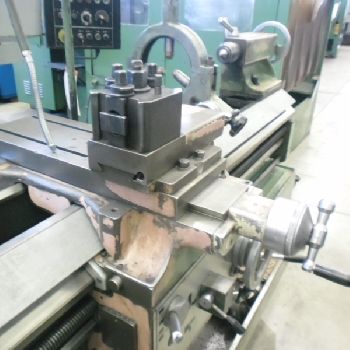

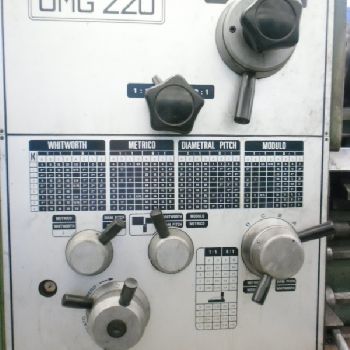

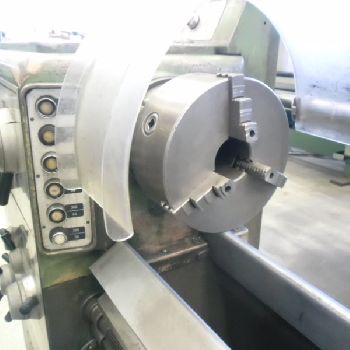

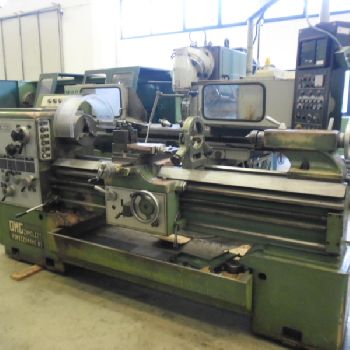

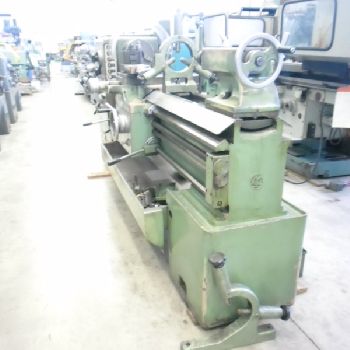

Lathes OMG ZANOLETTI 220x1500
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy | Montichiari | Lombardia |
| Category: | Lathes |
| Manufacturer: | OMG |
| Description: | Height of points mm 220 | Distance between the closed and open pallet tips mm 1500 | Diameter allowed on the bench mm 440 | Diameter allowed on the carriage mm 260 | Diameter allowed on the recess mm 620 | Length of the recess in front of the platform mm 200 | Width of the bench mm 350 | Cross carriage travel mm 350 | Tool trolley travel 140 mm Nose spindle connection CAM-LOCK 6 | Spindle bore diameter 60.5 mm Tailstock diameter mm 70 | Tailstock stroke mm 220 | Morse tailstock cone No. 5 | Spindle speed g / 1 '30 รท 1500 | Main electric motor Kw 5,6 | Machine weight Kg 2400 | Dimensions Mt 3,1x1,15x1,5 SELF - CENTERING DIAM.250 | TOOL TURRET | LUNETTE |
EURO MACHINE TOOLS srl Via Louis Bleriot n.5/7/925018 MontichiariItaly SHOW |
