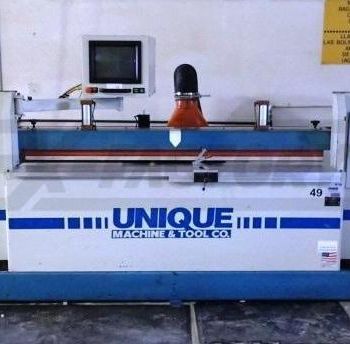

UNIQUE 2700 CNC
$ 32,500
| Type: | Buy-It-Now |
| Location: | Australia | West Coast | Tasmania |
| Category: | Skiving Machine |
| Manufacturer: | UNIQUE |
| Model: | 2700 CNC |
| Year of Make: | 1997 |
| Description: | UNIQUE 2700 CNC CNC Door Shaper CNC Controlled Machining Center for Raised Panel Doors. Equipped with: \n\n-- (1) CNC controlled 5" stackable vertical spindle (max. 4 tools per stack), 7.5 HP belt driven; max. clamping thickness 2-1/2" and 6" max. cutter head diameter. \n\n-- "X" Axis of spindle travels 81" on (2) THK rails with ball screw movement, "Y" axis with 5" travel on THK rails with 5" max. workpiece overhang, "Z" axis with 5" max. travel on THK rails. Features: \n\n-- Windows based PC computer with large touch screen menu for quick set-up, new door or custom door stiles can be programed in minutes, automatic operation from one style and size of door to the next, straight raised panels & widths of stile or rail and end tenoning work the same. \n\n-- Electronic sensors measure the length of the part to be cut allowing for various width panels or rails to be shaped consecutively, once a door is pre-programmed it can be re-called. Complete with: Electronic brake on spindles, ( |
