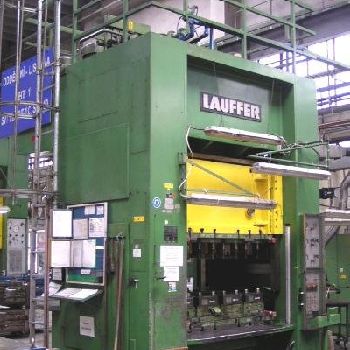

Hydraulic Double-Column (Drawing) Press LAUFFER RZU 200 (UVV)
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Lauffer |
| Model: | RZU 200 (UVV) |
| Year of Make: | 1984 |
| Description: | pressure 200 t distance between columns 1800 mm stroke 710 mm Distance table/ram, max. stroke up, adjustment up 1100 mm table surface area 1600 x 1300 mm pressure of drawing cushion in table 80 t stroke of drawing cushion in table 250 mm die cushion area 1400 x 1080 mm table height over floor 800 mm side window 1300 mm ram surface 1660 x 1300 mm speed down 400 mm/s speed up 410 mm/s working speed 14,3 - 49,7 mm/s oil volume l height over floor 5,05 m height beneath floor 0,4 m power requirement 46,0 kW weight 25,0 t Dimensions (WxDxH) 3,65 x 3,3 x 5,4 m German Safety: permitted for manual loading UVV 11.064 - VBG 7n5.2 light guard at front and back Sick drawing cushion in table hydraulic ejector in ram hydraulic conrollable dependant on pressure/time and way depth stop mechanical cutting impact cushioning two-hand operation |
