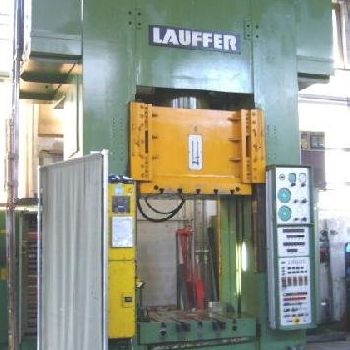

Hydraulic Double-Column (Drawing) Press LAUFFER RAU 320 (UVV)
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Lauffer |
| Model: | RAU 320 (UVV) |
| Year of Make: | 1982 |
| Description: | pressure 350 t distance between columns 1350 mm stroke 900 mm distance table/ram, max. stroke up, adjustment up 1300 mm table surface area 1300 x 1000 mm pressure of drawing cushion in table 100 t stroke of drawing cushion in table 380 mm die cushion area 350 x 285 mm capacity of ejector in ram 25 t ejector stroke in ram 200 mm table height over floor 750 mm ram surface 1300 x 1000 mm speed down 500 mm/s speed up 160 - 470 mm/s working speed 16 - 44 mm/s drawing speed 57 - 160 mm/s return capacity 32 t oil volume 1700 l height over floor 5,28 m power requirement 91,0 kW weight t Dimensions (WxDxH) 3,75 x 2,8 x 7,2 m German Safety: permitted for manual loading UVV 11.064 - VBG 7n5.2 light guard Sick drawing cushion in table hydraulic ejector in ram hydraulic ram interlocking in TDC two-hand operation foundation pit necessary |
