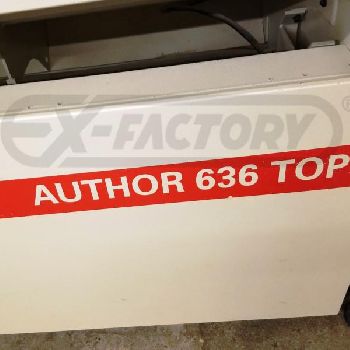

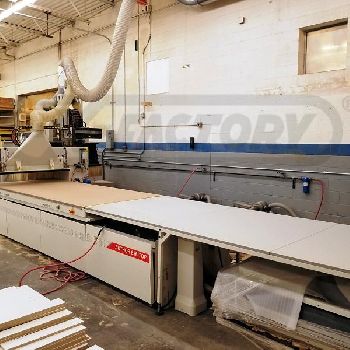

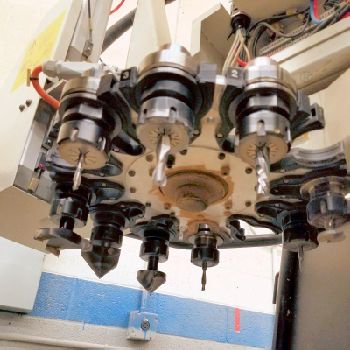

MORBIDELLI AUTHOR 636
$ 72,500
| Type: | Buy-It-Now |
| Location: | United States | Midwest |
| Category: | CNC Working Center |
| Manufacturer: | Morbidelli |
| Model: | AUTHOR 636 |
| Year of Make: | 2007 |

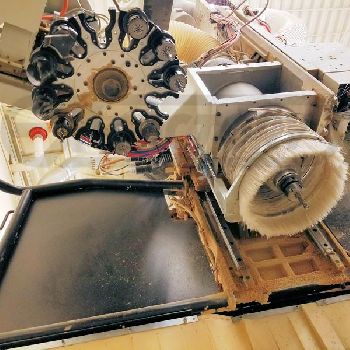

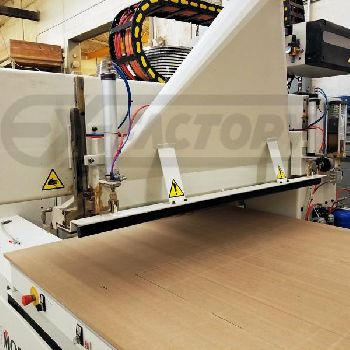

| Description: | MORBIDELLI AUTHOR 636 FLAT TABLE MACHINE (W/RAKE): \n\n-- Specifications: 5' x 12' Stationary extruded aluminum "MATRIX" table for "Nested Base" manufacturing; \n\n-- Work Area: "X" Axis 144" (3,660 mm), "Y" axis 57.8" (1,470 mm) for routing & 48" (1,230 mm) for boring, "Z" axis stroke 11" (280 mm), max material thickness is 7" (180 mm). \n\n-- Positioning Speeds: "X" & "Y" Axis 262 FPM (80 MPM), "Z" axis 74 FPM (22.5 MPM). Closed loop AC servo drive system with recirculating ground ball screw in the "X", "Y" & "Z" axis; all axes ride on precision prism linear guideways\n\n-- Work Table: Aluminum grid "MATRIX" vacuum table machined with a square grid pattern for fixturing parts, grid pattern allows use of vacuum pods or closed cell rope gasket material and use of spoil boards. (2) Independent working areas; external pop-up reference ins located on the sides & back of the table for positioning parts. \n\n-- Boring Unit: 3 HP (2.2 kW) - dual speed 4,500 & 6,000 RPM mo |
