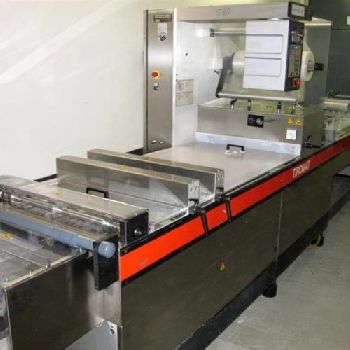

CFS TIROMATE Tiromat 3000/430
$ 36,459
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Thermoforming Machines |
| Manufacturer: | Tiromat |
| Model: | Tiromat 3000 / 430 |
| Year of Make: | 1993 |
| Description: | Vacuum deep-drawing unit CFS TIROMAT, type: Tiromat 3000/430 for soft film 3 packs per cycle (433-3.1) - 3 chambers next to each other x 1 row - Per chamber: Outside dimensions approx .: 450 x 134 mm, interior dimensions approx .: 433 x 117 mm, pull depth: variable 10 - 130 mm (in 5 mm pitch) 4 packs per bar (208 - 2.2) - 2 chambers next to each other x 2 rows one behind the other - Per chamber: Outside dimensions approx .: 225 x 201 mm, : 208 x 184 mm, depth of pull: variable 10 - 130 mm (in 5 mm grid) Specification: - SIEMENS control (memory programmable) - foil advance in 2 speeds (via drive motor) - foil preheating from above (integrated in molding station) - evacuation and fumigation over - Guillotine cross-cutters with counter-holder from below - Longitudinal cutting for 2 and 3 lanes - Edge strip removal via suction unit with container - Disposable baffle - Vacuum pump BUSCH, 1-stage - Protective hoods with electromagnetic interlock - Sealing and evacuation station - With cardan |
In.Ha.TEC Vertrieb & Service UG Am Bornrasen 499334 KirchheimGermany SHOW | |
