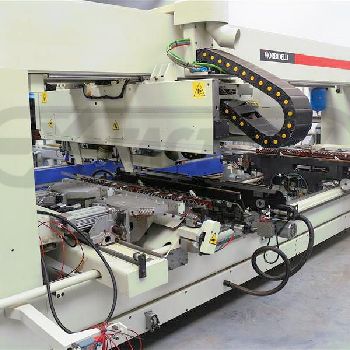

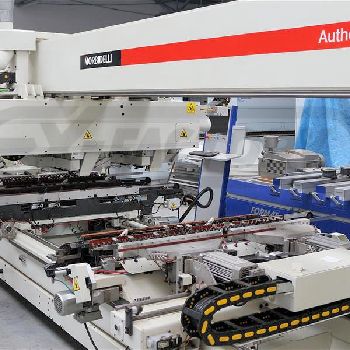

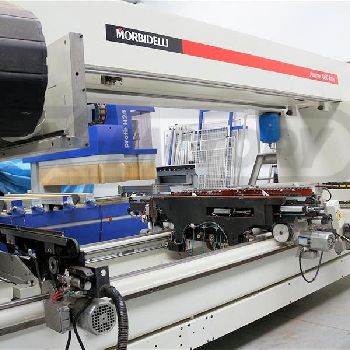

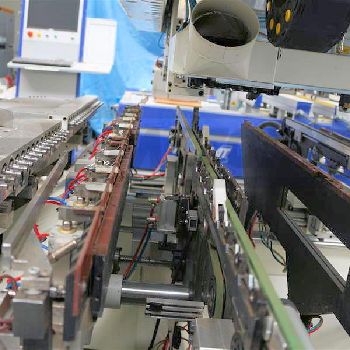

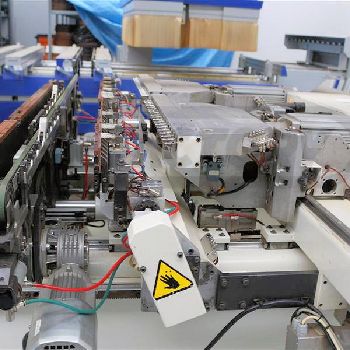

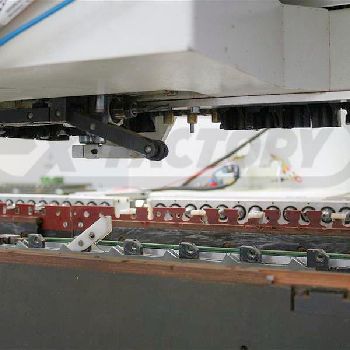

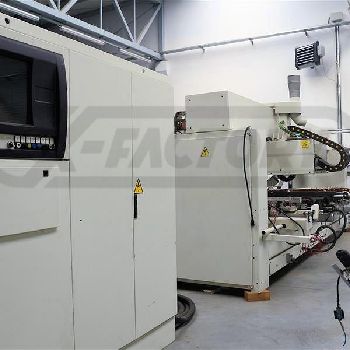

MORBIDELLI AUTHOR 660/FMS
$ 51,724
| Type: | Buy-It-Now |
| Location: | Poland | Paris |
| Category: | Further CNC Machines |
| Manufacturer: | Morbidelli |
| Model: | AUTHOR 660/FMS |
| Year of Make: | 2004 |

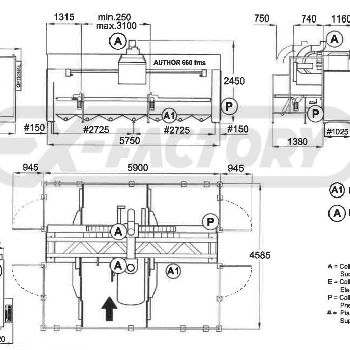

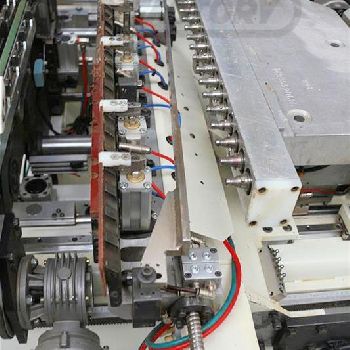

| Description: | MORBIDELLI AUTHOR 660/FMS BORING MACH. (FEED THRU CNC W/ROUTING): \n\n-- Specifications: Over all axes stroke for the PTP heads; "X" axis 142.9" (3,630 mm), "Y" axis 52.9" (1,344 mm) overall & 26.4" (672 mm) x 2 panels, "Z" axis stroke 4.5" (115 mm); Max working dimensions for single-panel size is 122" long x 51.1" wide (3,100 mm x 1,300 mm); Max material thickness 1.6" (40 mm), min material thickness 0.47" (12 mm). Max. 2-panel size is 122" long x 23.6" wide (3,100 mm x 600 mm); min panel size is 9.8" long x 5.9" wide (250 mm x 150 mm) \n\n-- Positioning speed: "X" & "Y" Axis 164 FPM (50 MPM), "Z" axis 68 FPM (21 MPM); vector speed at 246 FPM (75 MPM), acceleration/deceleration ramp 520 ms. In-feed / central / out-feed conveyor, each with (4) 0.35 HP (0.25 kW) motors, lineal positioning speed of the conveyor system is 174 FPM (53 MPM) \n\n-- Boring units: (2) Independent PtP boring units, each head with (1) 4 HP (3 kW) - 3,000 RPM motor; Each head with 29-Independent vertical |
