ITM P6000D
$ 32,691
| Type: | Buy-It-Now |
| Location: | Lithuania | Paris |
| Category: | Glass |
| Manufacturer: | ITM |
| Model: | P6000D |
| Year of Make: | 2006 |

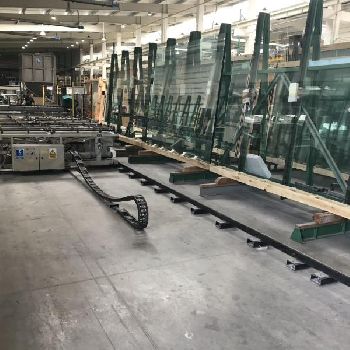

| Description: | ITM P6000D Double Side Movable Glass Loader (JUMBO) Double side movable glass loader for jumbo glass. Allows for loading the glass cutting table of up to 5 x 2 pick-up positions in fully automatic and precisely timed intervals. The loader travels to the required rack position and while travelling, the transfer frame of the floor loading system is tilted up in the vertical pick-up position. The feeder travels towards the rack until the glass stack is detected. Vacuum cups pull off the sheet from below and then tilt it electromechanically into the transport position. The glass sheet is fed to the cutting system or a buffer table on top of transport rollers. Machine structure designed for loading heavy glass up to 1.000 kG (2,200 Lbs) under heavy duty production. Specifications: \n\n-- Max. glass dimension: 6100 x 3300 mm (240" x 130") \n\n-- Max. glass weight: 1000 kG (2,200 Lbs) \n\n-- Glass thickness: 3 - 19 mm (1/8" - 3/4") \n\n-- Min. glass size (reference side): 1500 x 1500 mm \n\n- |
