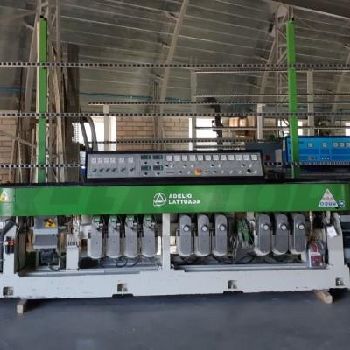

ADELIO LATTUADA BR 10
$ 64,900
| Type: | Buy-It-Now |
| Location: | Lithuania | Midwest | Wyoming |
| Category: | Glass |
| Manufacturer: | ADELIO LATTUADA |
| Model: | BR 10 |
| Year of Make: | 2006 |
| Description: | ADELIO LATTUADA BR 10 Vertical Straight Line Beveler (12) Spindle premiere Italian straight line beveling machine for the processing of the bevel and pencil edge with liquid cerium oxide. Precursor to the GAMMA line, the machine is geared toward medium production with read outs placed on the control panel to set adjustments of glass thickness, bevel inclination and edge thickness in order to process the desired bevel. Wheel Configuration: (2) Diamond Metallic Wheels (4) Diamond resin wheels (150 mm) for the beveled edge (2) Diamond metallic wheel (150 mm) for the beveled edge (4) Felt Wheels Specifications: \n\n-- Min. glass size: 110 x 110 mm (40 x 40 mm with special device) \n\n-- Glass thickness: 3 - 25 mm (1/8" - 1") \n\n-- Max. bevel range: 3° - 45° \n\n-- Max. bevel length: 60 mm (2-5/16") \n\n-- Feed: 0 - 5.2 m/Min (16 FPM) \n\n-- Dimensions: 7900 x 1200 x 2200 mm \n\n-- Weight: 4800 kG (9039 Lbs) NOTE: The machine is in very good condition and ready for immediate shipment. NOTE |
