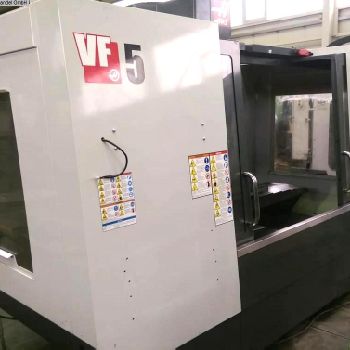

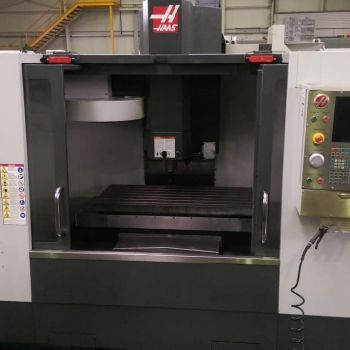

HAAS VF 5/40
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Bühl | Baden-Württemberg |
| Category: | Vertical Machining Centers |
| Manufacturer: | Haas |
| Model: | VF 5/40 |
| Year of Make: | 2012 |
| Description: | warehouse number 1052-06048 category Machining Center - Vertical make HAAS Type VF 5/40 Construction year 2012 control CNC storage location D - 77815 Bühl country of origin United States delivery time immediately Quotation from stock, free loaded trucks price on demand; Technical details x-travel 1270 mm y-travel 660 mm z-travel 635 mm control HAAS table surface area 1320 x 580 mm Spindle taper SK 40 Spindle speeds Max. 8100 rpm spindle power 14.9 kW Torque on the spindle 122 Nm at / at 2000 rpm internal coolant supply Yes Feeds x / y / z - stepless Max. 12.7 m / min Rapid traverse x / y / z 18.0 m / min table load Max. 1814 kg Distance spindle nose and table 107/742 mm Feed force x / y / z 11343/18238/18238 N Number of tool magazine slots 20 Tool diameter when fully loaded 89 mm Tool weight max. 5.4 kg Tool change time about 4.2 sec Total power requirement 18 kW Machine weight approx. 5.6 tons Dimensions L x W x H 3.6 x 2 |
Hans Klein Werkzeugmaschinen-Handel GmbH Im Mühlgut 2-477815 Bühl-WeitenungGermany SHOW | |
