BOTTERO 501
$ 39,700
| Type: | Buy-It-Now |
| Location: | Lithuania |
| Category: | Glass |
| Manufacturer: | Bottero |
| Model: | 501 |

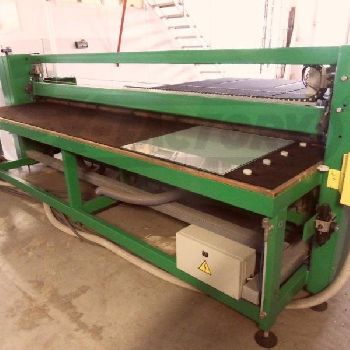

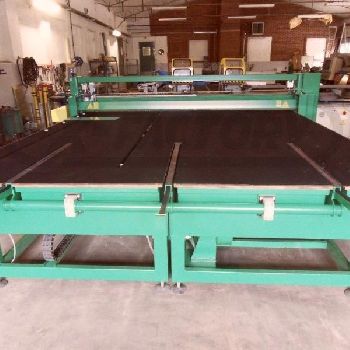

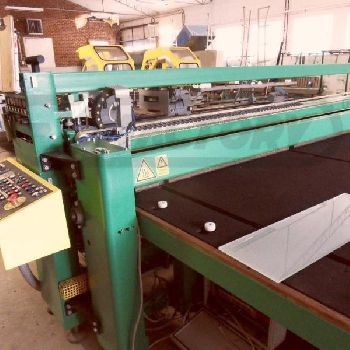

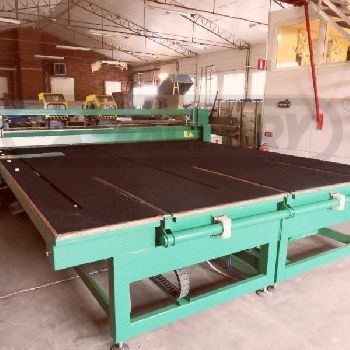

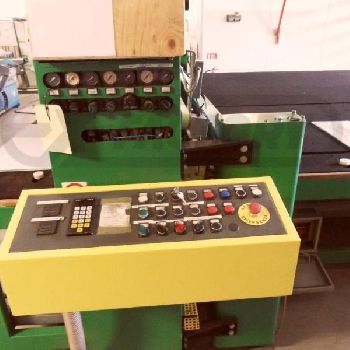

| Description: | BOTTERO 501 Laminated Glass Cutting And Optimizing Table CNC Controlled automatic shape cutting table for the cutting, handling, breakout and loading of sheets of flat glass with edge deletion for jumbo sheets. Specifically designed for processing laminated glass. Specifications: Max. cut: 3,400 mm (133.8") Min. cut: 250 mm (9.9") Max. thickness: 6 + 3.04 PVB + 6 mm (0.25 + 0.120 PVB + 0.25) Max. thickness with HP LOW-e: 8 + 4.56 PVB + 8 mm (5/16 + 0.180 PVB + 5/16) Min. thickness: 3 + 0.38 PVB + 3 mm (1/8 + 0.015 PVB + 1/8) Monolithic glass cut: 3 - 19 mm (up to 3/4") Breakout: 3 - 10 mm (up to 3/8") Cutting speed: 40 m/Min (130 FPM) Grinding speed (with Easy deletion): Up to 80 m/Min (3,150 IPM) Weight: 3200 kG (7170 Lbs) Features: \n\n-- Blade cutting system for processing glass with thick PVB layers. This system provides several benefits: Min. heat of the glass, no waiting time between cuts, avoiding delamination on PVB, high quality on the cut. \n\n-- Low-E coating edge deletion s |
