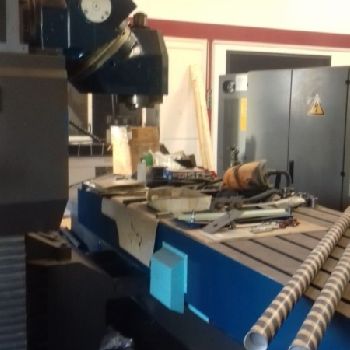

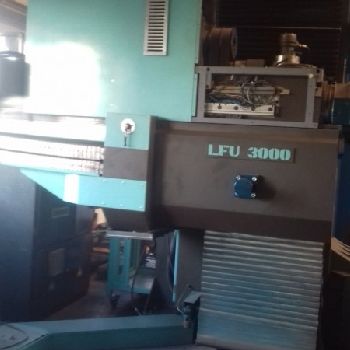

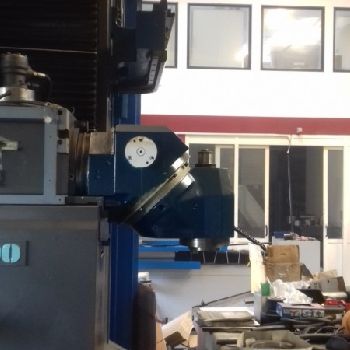

ZAYER LFU 3000
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Düsseldorf |
| Category: | Bed Type Milling Machines |
| Manufacturer: | Zayer |
| Model: | LFU 3000 |
| Year of Make: | 1991 |
| Description: | TECHNICAL DETAILS x-travel 2700 mm y-travel 1200 mm z-travel 1500 mm control HEIDENHAIN TNC 415 table top 3000 x 1000 mm table load 7000 kg spindle motor 26 kW Distance spindle / table 1472 mm Spindle speeds 20-1800 rpm gear stages 2 tool holder 50 ISO feed 6 - 5000 mm / min Rapid 10 m / min Total power requirement 55 kVA Machine weight approx. 18.0 t Space required approx. 7357 x 5000 x 3607 mm equipment universal milling head NC tool changer 60-fold (pos.) Coolant system Yes chip conveyor Yes; DESCRIPTION WORK SPINDLE / HEAD * Spindle type: NC swivel head * Swiveling: 360 ° * Operating mode: automatic, positionability: 5 ° * Swiveling (2nd rotary axis): 180 ° * Operation way: automatically TOOL MAGAZINE * Number of tool positions: 60 * Tool diameter max .: 125 mm * with free neighboring position: 250 mm * Tool length max .: 450 mm |
Knops Werkzeugmaschinen GmbH & Co. KG Ronsdorfer Strasse 14340233 DüsseldorfGermany SHOW |
