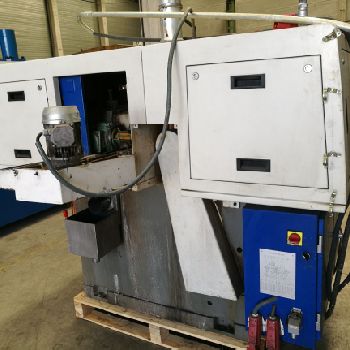

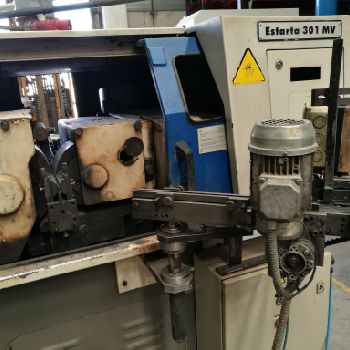

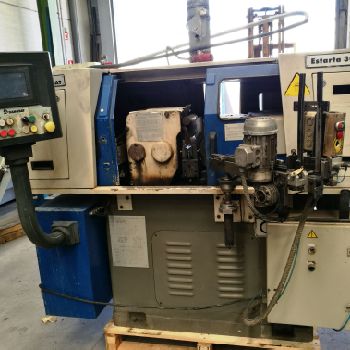

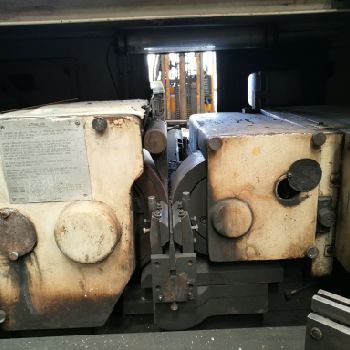

ESTARTA 301 MV
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain | Parets del Vallès | Catalunya |
| Category: | Grinding Machines |
| Manufacturer: | Estarta |
| Model: | 301 MV |

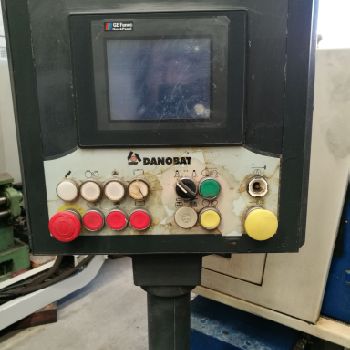

| Description: | Technical characteristics of the used ESTARTA 301 MV centerless grinding machine Reference: 165-X008 Min-max grinding diameter: 1,5-50 mm In-feed grinding length (max): 125 mm Grinding wheel dimensions (ODxWidthxID): 300x125x175 mm Regulating wheel dimensions (ODxWidthxID): 220x125x125 mm OD (min) grinding wheel: 220 mm OD (min) regulating wheel: 165 mm Grinding wheel peripheral speed: 35 m/s Regulating wheel speeds: De 10 and 250 min -1 Height dresser regulator regulating wheel: +15 / -10 mm Max grinding and regulating wheel's profile depth: 8 mm Max working wheel orientation: 30º Diamond wheel feed rate: 100-150 mm/min Grinding wheel power: 7,5 kW Regulating wheel power: 0,75 kW Approximate machine weight: 1.800 kgs Machine dimensions: 2630x1665x1650 mm Year: 2004 Equipped with: Numerical Control: FANUC Through feed grinding Piece feeder with support for various piece sizes Conveyor belt for the piece extraction Several grinding wheels Need more information about this second-hand EST |
