BOVONE ELB-10
$ 22,500
| Type: | Buy-It-Now |
| Location: | United States | Virginia |
| Category: | Glass |
| Manufacturer: | ELB-SCHLIFF |
| Model: | ELB-10 |
| Year of Make: | 1995 |

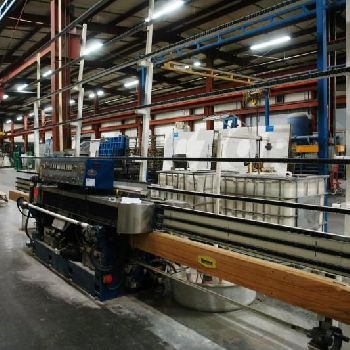

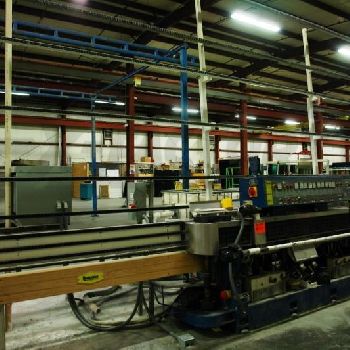

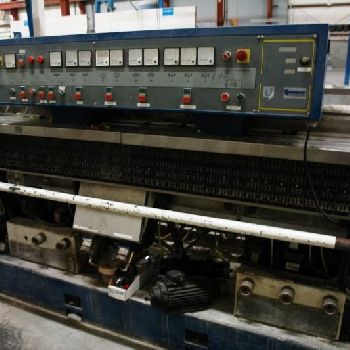

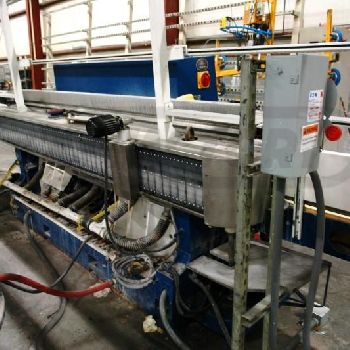

| Description: | BOVONE ELB-10 Straight-Line Glass Beveler (Refurbished 2018) 10-Wheel edging machine for producing flat and arris profile with a variable mitering group up to 45°. There are (6) mitering wheels attached to the swivelling beam. The main movements of the machine are controlled by SIEMENS PLC. Wheel Configuration: (2) Diamond Wheels For Flat Edge (1) Diamond Resin Wheel (1) Diamond Metallic Wheel For Arrises (1) Polishing Wheel For Arrises (1) Diamond Metallic Wheel For Arrises (1) Polishing Wheel For Arrises (2) Diamond Resin Wheel (1) Felt Wheel Specifications: Feed: 0.35 - 5.4 m/Min (18 FPM) Min. Glass measure: 40 x 40 mm Glass thickness: 2 - 30 mm (1-1/4") Arris width: Max. 5 mm ( ) Working height: 825 mm (32-1/2") Overall dimensions: 7,900 x 1,200 x 2,900 mm (311 x 48 x 115") Weight: 3400 kG (9,020 Lbs) NOTE: Machine in good working order, under power and available for immediate shipment. Factory refurbished in 2018. |
