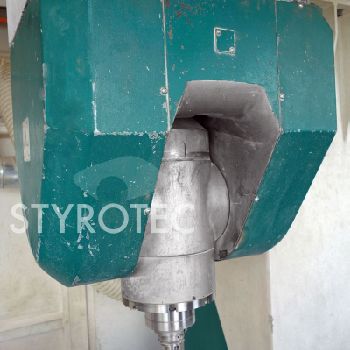

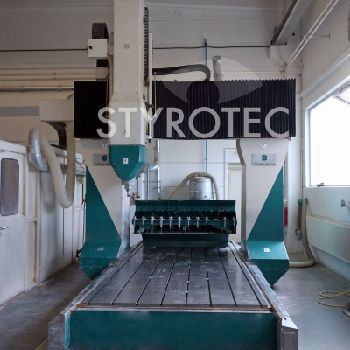

10.039 5-axis portal milling machine Zimmermann FZ35, 2001
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Waldburg | Baden-Württemberg |
| Category: | CNC Milling Machines |
| Manufacturer: | Zimmermann |
| Model: | FZ35 |
| Year of Make: | 2001 |
| Description: | 10.039 5-axis portal milling machine Zimmermann FZ35, 2001 ID 10039 designation 5-axis portal milling machine Manufacturer carpenter Type FZ35 Construction year 2001 State used-good Location Baden-Württemberg, Germany Workspace X-axis 3,000 mm Y-axis 2,360 mm Z-axis 1,250 mm A-axis ± 110 ° C-axis ± 300 ° Spindle nose distance - table 95mm Technical specifications: Control: Fidia worktable Length x width x height approx. 5,000 x 2,000 x 400 mm Table load: max. 30,000 kg / m² T-slots: lengh 18H12 Distance T-slots: 250 mm milling unit Spindle power: 25 kW Spindle speed: max. 15,000 min-1 Torque: 80 Nm Tool holder: HSK 63 A Tool bracing: hydraulic Swivel axis spindle nose: approx. 300 mm Actuators linear axes Feedrate X-, Y-, Z-axis: 20 m / min Axis acceleration X, Y, Z axis: 1.5 m / s2 connection data Connected load: approx. 30 kW Pre-fuse: 63 A Mass, weights Space required machine with protective cabin: approx. 7,500 x 5,000 x 2,200mm Total weight: appro |
