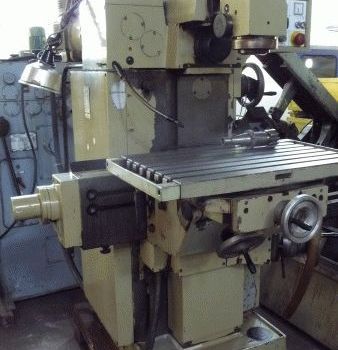

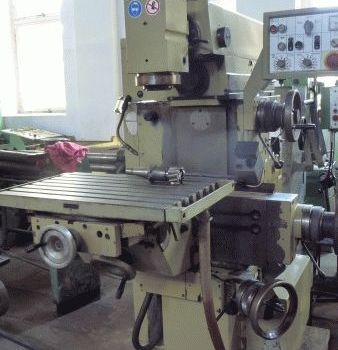

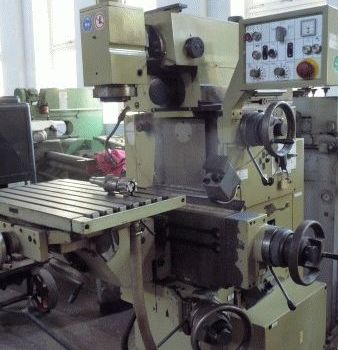

WMW FUW 250/IV
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Eilenburg |
| Category: | Knee Type Milling Machines |
| Manufacturer: | WMW |
| Model: | FUW 250/IV |
| Year of Make: | 1982 |
| Description: | offer details warehouse number 0735a Subcategory knee make WMW Type FUW 250 / IV Construction year 1982 Type of control conventional storage location from location country of origin Germany delivery time according to the arrangement Quotation EXW - ex works (free loading) price on demand; Technical details Laengsbewegung / longit. Move: X 400 mm Horizontal movement / horiz. Move: Y 220 mm Vertical movement m. mech. feed / vert. move mech. feed: Z 400 mm Tool holder / taper: ISO 40 Feed continuously all axes X, Y and Z / feeds all axis 6.3-1250 mm / min Spindle speeds R + L stepless / speeds of spindle (left / right) 45 - 2240 rpm. Table size / table: 630 x 350 mm drive power 7 kW Outside dimensions / dimensions 1400 x 1600 x 1800 mm Weight: about 1450 kg 1.45 t |
ZOMA Werkzeugmaschinen Walther- Rathenau-Straße 2404838 EilenburgGermany SHOW |
