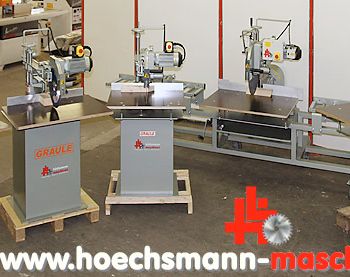

GRAY roll b. Lngenans., RLE ST 60
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Langen (Hessen) | Hessen |
| Category: | Wood Saws Accessories |
| Manufacturer: | Graule |
| Description: | GRAULE electronic length measuring system type RLE-ST60 new machine, the electronic length measuring system type RLE-ST60 is a fully automatic, programmable length stop for accurate and rational production, the basic structure forms a stable roller conveyor with closed angle steel frame and ball bearing steel rollers, between the rollers are inserted cover plates, The sturdy stop system consists of a stable, extruded aluminum profile 100 x 100 mm, in which the drive belt is protected against chips, the powerful servo motor has a high pushing or holding force, new top condition Technical data: Voltage 230 V 50 Hz , Programs 100 cutting lists with 20 lengths each, motor power 440 watts, feed max. 60 m / min, two-line LCD display accuracy +/- 0.2 mm Technical data: length 2/3 / 4.8 / 6.8 / 8.5 m, roll width 400 (optional 500/600) mm, rolls PVC ( optional steel), load capacity 40kp, roller diameter 50 (optional 60) mm, roller distance 250 mm, working height 885 +/- 30 mm, with electr. Gaug |
 höchsmann maschinen GmbH Ohmstraße 2263225 Langen-HessenGermany SHOW |
