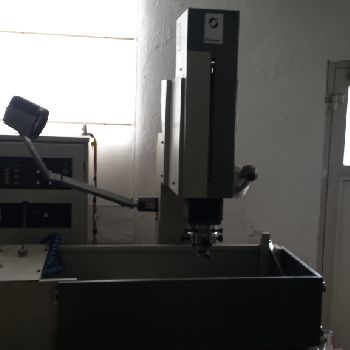

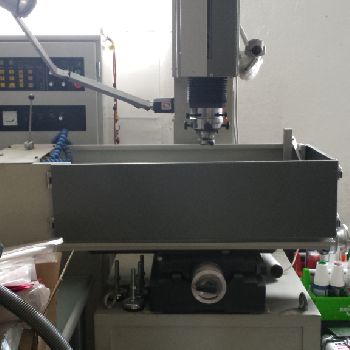

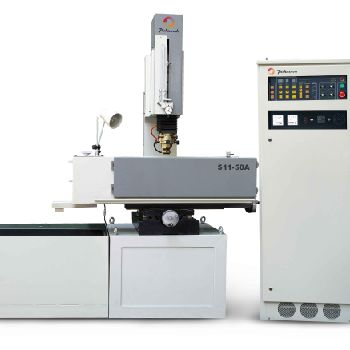

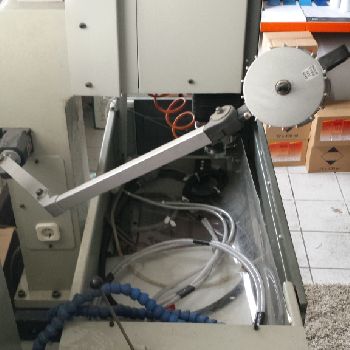

Spark / Pisraneh 511 50 A Electric Discharge Machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany | Katzwinkel (Sieg) | Rheinland-Pfalz |
| Category: | Erosion Machines |
| Description: | EDM machine EDM machine Spark / Pisraneh 511 50 A Operating hours: only about 22 H !!! Demonstration; was only for testing on functionality in use (without use of water) Clamping table 640 x 300 mm Max. Travel distance: x = 460 mm Max. Travel distance: y = 260 mm Electrode stroke: z = 270 mm Container L / W / H 1050/500/300 mm Max. Workpiece weight 350 kg Max. Electrode weight (with counterweight) 40 kg Max. Electrode weight (without counterweight) 130 kg Inductance L 110 Max. Power consumption: 50 A Max. Cable intake 4.5 kW Max. Removal rate: mm 3x min-1 300 Achievable accuracy z-axis: ± 0.02 mm Max. achievable surface quality: 0.32 mμ Burnup: 0.03% Dimensions over all L / W / H 2750/1250/2180 mm Machine weight 800 kg Cabinet weight 200 kg Instruction guaranteed by a specialist !!! Internally: A2746401 Year of construction: 0 |
Maschinendrehpunkt Natascha Jakob Sandstr. 2257581 KatzwinkelGermany SHOW |
