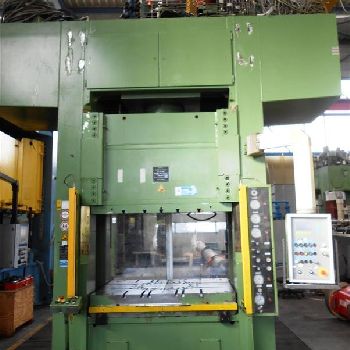

Hydraulic Double-Column (Drawing) Press LAUFFER RZU 100
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Lauffer |
| Model: | RZU 100 |
| Year of Make: | 1996 |
| Description: | pressure 100 t distance between columns 1525 mm stroke 450 mm distance table/ram, max. stroke up, adjustment up 850 mm table surface area 1500 x 1150 mm pressure of drawing cushion in table 30 t stroke of drawing cushion in table 150 mm die cushion area mm table height over floor 940 mm side window 480 mm ram surface 1500 x 1150 mm speed down mm/s speed up mm/s working speed mm/s oil volume 1200 l power requirement kW weight 25,0 t dimensions (WxDxH) 4,2 x 1,75 x 5,1 m light guard Sick ejector in ram hydraulic cutting impact absorption hydraulic die cushion / ejector in table hydraulic |
Schuler Pressen GmbH Werk Göppingen Marketing Frau Baur Postfach 80055299031 ErfurtGermany SHOW |
