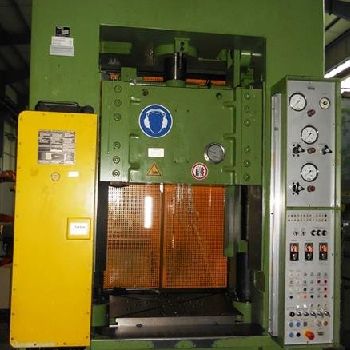

Hydraulic Double-Column (Drawing) Press LAUFFER RZU 63 (UVV)
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Double Column Presses |
| Manufacturer: | Lauffer |
| Model: | RZU 63 (UVV) |
| Year of Make: | 1986 |
| Description: | pressure 63 t distance between columns 850 mm stroke 500 mm Distance table/ram, stroke up 800 mm table surface area 800 x 630 mm pressure of drawing cushion in table 25 t stroke of drawing cushion in table 200 mm die cushion area 630 x 450 mm table height over floor 800 mm ram surface 800 x 630 mm speed down 416 mm/s speed up 454 mm/s working speed 139 mm/s oil volume 710 l power requirement 32,0 kW weight 9,6 t dimensions 1,9 x 2,1 x 4,7 m controllable dependant on pressure/time and way die cushion in table hydraulic cutting impact absorption hydraulic depth stop mechanical ram interlocking two hand control buttons |
