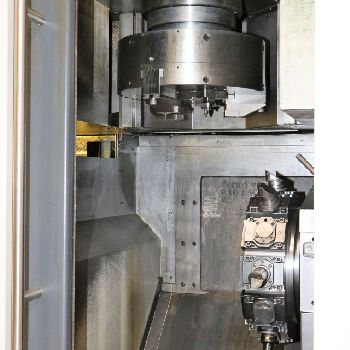

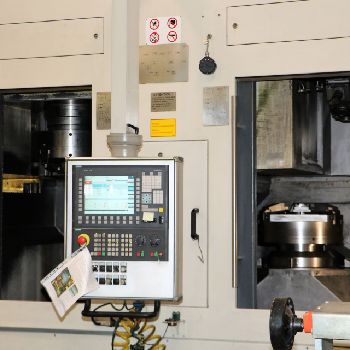

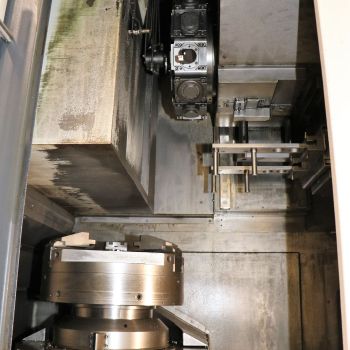

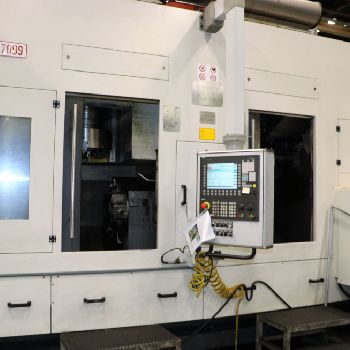

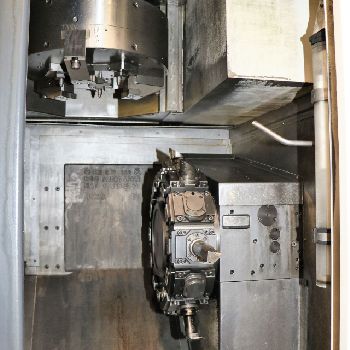

HESSAPP DVT 550 L Two-Spindle Pick-Up Vertical Lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Belgium | Charleroi | Wallonie |
| Category: | Vertical Turning Machines |
| Manufacturer: | Hessapp |
| Model: | DVT 550 L |
| Year of Make: | 2009 |

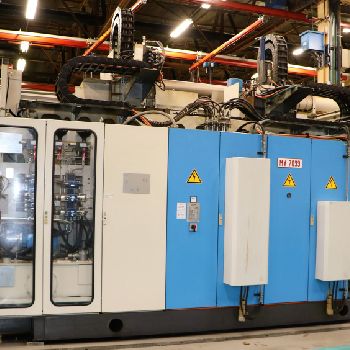

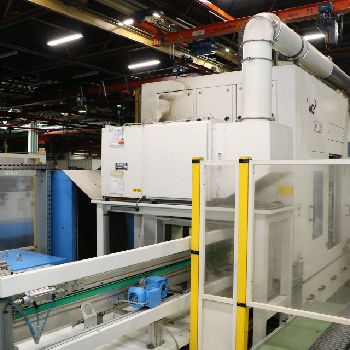

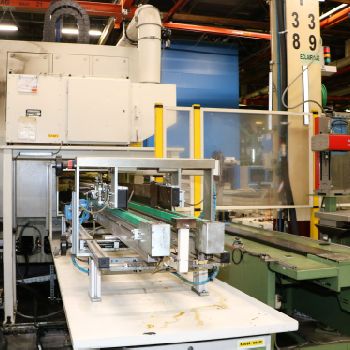

| Description: | Control Siemens SINUMERIK 840 D SL Work area Turning diameter max.: 550 mm Swing diameter max.: 550 mm Traverse paths of cross-slides and axis speeds X-axis (cross-slides 1 & 2): 350 mm Z-axis (cross-slides 1 & 2): 450 mm Feed speed max.: 30 m/min Rapid traverse max.: 60 m/min Spindle head Spindle flange according to DIN 55026 Size: A11 Front bearing diameter: 180 mm Spindle speed and spindle power Spindle speed: 750 - 2800 rpm Drive power (ED 100%): 65 kW Drive power (ED 40%): 80 kW General data Machine number: S1003028.001 Operating hours read 33748 Machine power: 110 kW This machine is located in a production cell. The HESSAPP DVT 550 L can be purchased individually or as a package with the following machines: LIEBHERR LFS 500 CNC Gear Shaper (Surplex Artikelnummer: 535395) LIEBHERR LC 500 CNC gear hobbing machine (Surplex article number: 535398) RAUSCH Gratomat GR 300 deburring machine (Surplex article number: 535396) ABB IRB 6640 Handling Robot (Surplex Part |
