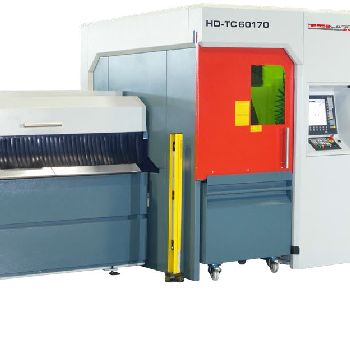

Profile and tube laser cutting machine HESSE by DURMA HD-TC 60170
$ 470,578
| Type: | Buy-It-Now |
| Location: | Austria | Wiener Neudorf | Niederösterreich |
| Category: | Laser Cutting Machines |
| Manufacturer: | Durma |
| Model: | HD-TC 60170 |

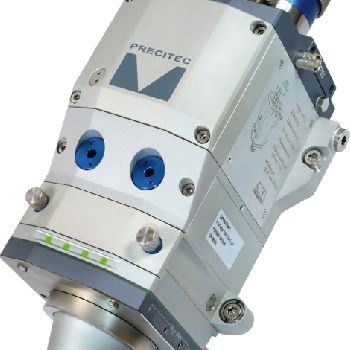

| Description: | Laser power: 0.2 - 2.0 kW Wavelength: 1,070 - 1,080 nm Polarization: fortuitously Max. Pulse rate: 5.0 kHz average power consumption: 25 kWh Max. Sheet thicknesses: Structural steel: 8 mm Stainless steel: 4 mm Aluminum: 6 mm Max. Pipe Ø: 170 mm Min. Tube Ø: 20 mm (Ø 12 optional) Max. Dimensions square profiles: 120 x 120 mm Max. Dimensions of rectangular profiles: 150 x 100 mm Max. Profile length: 6,500 mm Min. Profile length (for automatic feed): 3,000 mm Max. Profile weight: 37.5 kg / m Automatic feeding: Yes Automatic lead out: Yes Cutting head: Yes Number of centering jigs: 1 Length of the last inserted part: 185 mm Linear speed centering jig: 90 m / min. Linear acceleration centering jig: 10 m / s2 positioning accuracy: ± 0.20 mm repeatability: ± 0.05 mm Profile types: round, square |
HESSE+CO Maschinenfabrik GesmbH Industriezentrum NÖ-Süd, Straße 4, Objekt 8A-2351 Wiener NeudorfAustria | |
