Jiangsu Yangli Group Co МР10-30 Stamping press
$ 71,018
| Type: | Buy-It-Now |
| Location: | Russia |
| Category: | Stamping Presses |
| Manufacturer: | Jiangsu Yangli |
| Model: | МР10-30 |
| Year of Make: | 2007 |

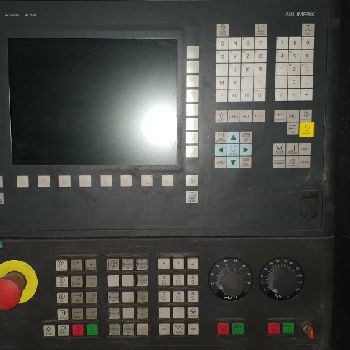

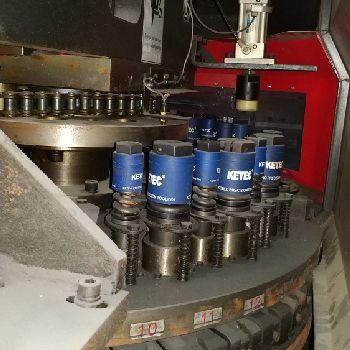

| Description: | The CNC series punch MP10 has a body structure (ZL2004 2 0108852.4), which accepts a tempering treatment. German And + L. The hydraulic system has reliable performance and low power consumption (1 1 kW). CNC system FANUC OIC or SIEMENS 840D is used on this series of punch. Revolving (ZL 022 1821 1.) is distinguished by a long sleeve structure and the station index has a sectional wheel and a worm gear. |This series consists of pneumatic punch and International electrical components, imported long travel ballscrew. linear overpass, with a desktop brush, as well as steel balls, auto central lubrication device and auto with floating clamps|Model MP-10-30 hydraulic |Capacity kN 300 |Maximum. Sheet metal processing (repositioning) mm 1250x2500 |Maximum weight kg 153 |Maximum speed m / min 106 |Maximum. Plate Thk mm 6.35 |Maximum. Stamping diameter mm f88.9 |Die qty. T 32/24 -ZH |Processing accuracy mm 0.1 |Stamping Frequency HPM 600/450 F |
| Technical Specifications: | Type: Hydraulic Table length: 1250.0 mm Table width: 2500.0 mm Length x width x height: 5340.0 mm × 2700.0 mm × 2200.0 mm Weight: 19500.0 kg State: good At local norms: --------- Status: dismantled |
