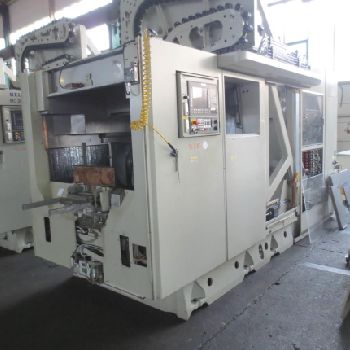

HELLER MC20AB Machining center - 5 axis
$ 116,116
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Machining Centers |
| Manufacturer: | Heller |
| Model: | MC20AB |
| Year of Make: | 2007 |

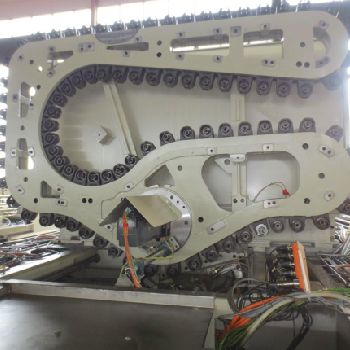

| Description: | Machine type Machining Center - Universal |Make LIGHTER |Enter MC20AB |Year of production 2007|Technical details |x-way 800 mm |y-way 800 mm |Z-way 1000 mm|Feed X / Y / Z axis 1 - 60,000 mm / min |Rapid traverse X / Y / Z 60.00 m / min |Acceleration x / y / z 8,00 m / s |Feed force X / Y / Z axis 10,000 N |Spindle speed - stepless 1 - 16,000 rpm |Power at 100% load 30,00 kW |Power at 40% load 34.00 kW |Max. Torque at the spindle 60/85 Nm |Tool holder HSK63 |B-axis 360 x 0.001 |Table size 520 mm |Table load 0.50 t |Max. Workpiece diameter 900 mm |a-axis -180 / +90 x 0.001 |Chain magazine 88 pieces |Tool diameter 72 mm |Tool diameter with 2 free positions 150 mm |Tool length - max. 600 mm |Weight of tools max. 12.00 kg |Cutting time 3.00 sec |Total power requirement 30.00 kW|Additional information |5-axis machining center with SIEMENS SIN 840D sl. control |Z - axes are built crosswise with 2 drives and transports |the two bearings for the A axis (bridge swi |
| Technical Specifications: | Axis X: 800.0 mm Axis Y: 800.0 mm Axis Z: 1000.0 mm Type: Horizontal CNC: SIEMENS SIN 840D sl. Type of axis: Tilting bed Table length: 520.0 mm Table width: 520.0 mm Max. part weight: 500.0 kg Number of tool pockets: 88.0 Spindle taper: HSK63 Max. spindle speed: 16000 rpm Spindle motor power: 30.0 kW Length x width x height: 3000.0 mm × 6000.0 mm × 4000.0 mm Weight: 13000.0 kg State: good At local norms: yes Status: in production |
