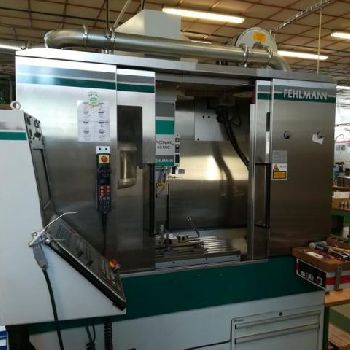

Fehlmann PICOMAX 60-M high speed machining center
$ 94,140
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Machining Centers |
| Manufacturer: | Fehlmann |
| Model: | PICOMAX 60-M |
| Year of Make: | 2003 |

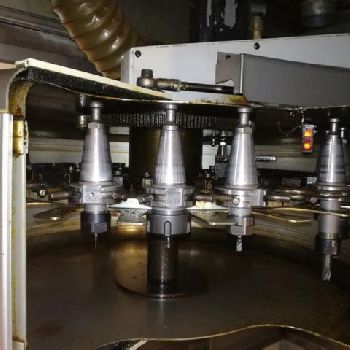

| Description: | The machine is in excellent technical condition. |Table clamping surface: 920x380 mm |Heidenhain control system: TNC 530 |X-axis travel: 505 mm |Y-axis travel: 355 mm |Z travel: 610 mm |Spindle speed: 0 - 18000 / min. |Number of steered axles: 3 |Spindle clamping spindle: SK 30 |Main electric motor power: 5.6 / 8.4 kW |Dimensions L x W x H: 2000x2000x2500 mm |Machine weight: 3200 kg |Total input: 22 kVA |Number of tool tray positions: 24|Enclosure design and entire stainless steel machine, carbon machining specialization, complete stainless steel exhaust for carbon, coolant cooling and oil nebula cooling. Refrigerator for electrode cooling. The laser is a laser measuring tool as well as a resistive probe. The machine also has an additional 80-watt electric spindle and a bracket on the side of the spindle. |Upon agreement, the tour is open. |
| Technical Specifications: | Axis X: 505.0 mm Axis Y: 355.0 mm Axis Z: 610.0 mm Type: Vertical CNC: Heidenhain TNC 530 Table length: 920.0 mm Table width: 380.0 mm Number of tool pockets: 24.0 Spindle taper: SK 30 Max. spindle speed: 18000 rpm Spindle motor power: 8.4 kW Rotary table: no Length x width x height: 2000.0 mm × 2000.0 mm × 2500.0 mm Weight: 3200.0 kg State: good At local norms: yes Status: visible |
