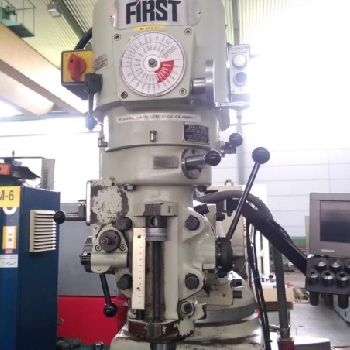

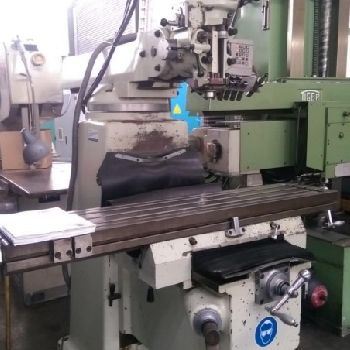

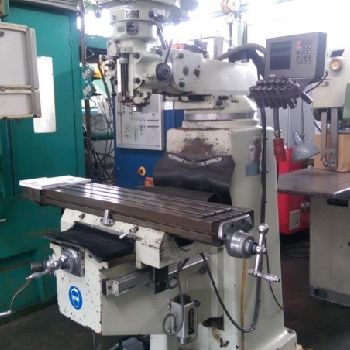

First LC-185 VS universal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Universal Milling Machines |
| Manufacturer: | FIRST |
| Model: | LC-185 VS |
| Year of Make: | 1998 |

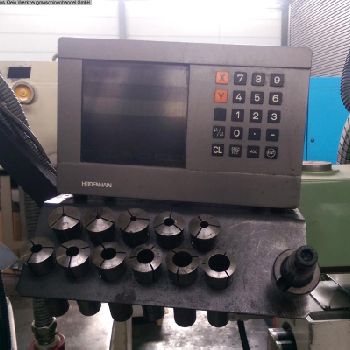

| Description: | Category Milling Machine - Universal |Make FIRST |Type LC-185 VS |Year of construction 1998 |Control conventional |x-way 790 mm |y-way 390 mm |z-way 350 mm |Table clamping surface 1270 x 254 mm |Spindle mount R 8 |Spindle speeds 60 - 4500 rpm |Spindle feed 0.04 - 0.08 - 0.14 mm / rev |Spindle motor 1.5 kW |Vertical head swiveling right / left 90 |Vertical head swiveling forwards / backwards 45 |Boom adjustment horizontal 530 mm |Swing arm 360 |Distance spindle nose and table 0 - 450 mm |Discharge of the milling spindle 165 -690 mm |Total power requirement 2 kW |Machine weight approx. 1.2 t |Dimensions of the machine L x W x H 1.73 x 1.60 x 2.42 m |= Multi-purpose milling machine |Digital accessories on 2 axes HEIDENHAIN, various collets |
| Technical Specifications: | X axis: 790.0 mm Y axis: 390.0 mm Z axis: 350.0 mm Table length: 1270.0 mm Table width: 254.0 mm Spindle taper: R8 Max. spindle speed: 4500 rpm Spindle motor power: 1.5 kW Overhauled: no Length x width x height: 1750.0 mm × 1600.0 mm × 2420.0 mm Weight: 1200.0 kg State: good At local norms: --------- |
