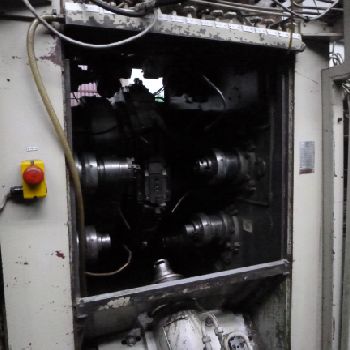

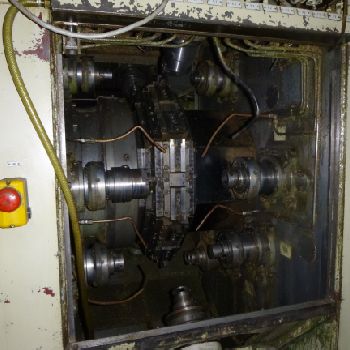

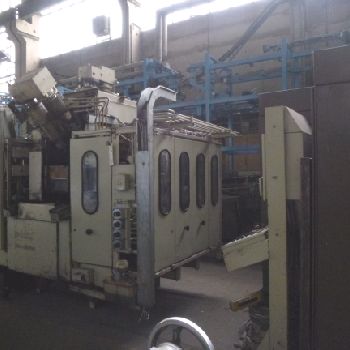

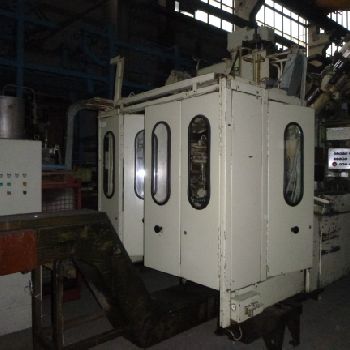

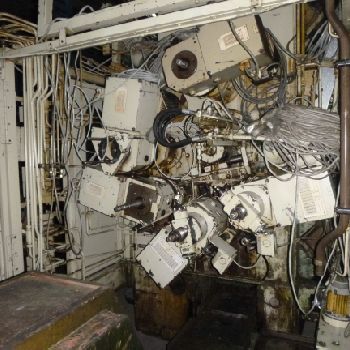

WEMA Vogtland BTrPi 900/8 Transfer Machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Rotary Transfer Machines |
| Manufacturer: | VOGTLAND |
| Model: | BTrPi 900/8 |
| Year of Make: | 1987 |
| Description: | TRANSFER AUTOMAT with 3 workstations |e.g. Production of fittings of larger quantities|Further technical information about the machine: |- Workpiece carrier: Workpiece holding drum 800mm for 8 workpiece clamping stations, cycle time 10 sec. |- Drilling and milling unit: SK 40 intake; Spindle stroke 125mm; Feed 1 m / min .; Rapid traverse 4 m / min .; Speed max. 2240 rpm |- 1. tapping unit: SK 40 receptacle; Quills 125mm; Working stroke 125mm; Speed 35.5 - 900 rpm; right left |- 2nd tapping unit: SK 40; Quills 125mm; Working stroke 80mm; Speed 45 - 560 rpm; right left|Domestic equipments: |- 2 hydraulic units |- Chip transport device |- belt filter manufacturer filter technology Gera (fleece belt 430mm) |- Control panel |- Hand switch|Further Technical Details: |- number of stations: 8 pieces |- control: PS 2000 |- total power requirement: 72 kW |- weight of the machine: approx. 18,0 t |- dimensions of machine LxBxH: 2100x3400x2600 mm |- dimensions electric cabinet Nr |
| Technical Specifications: | Length x width x height: 2100.0 mm × 3400.0 mm × 2600.0 mm Weight: 18000.0 kg State: good At local norms: --------- Status: visible |
