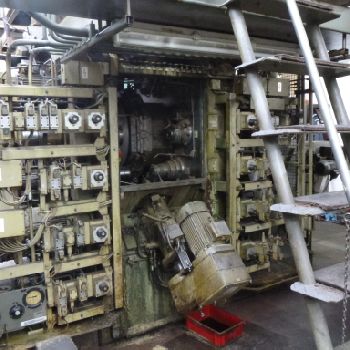

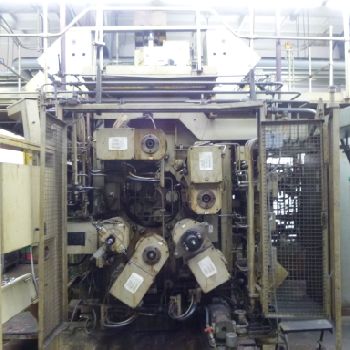

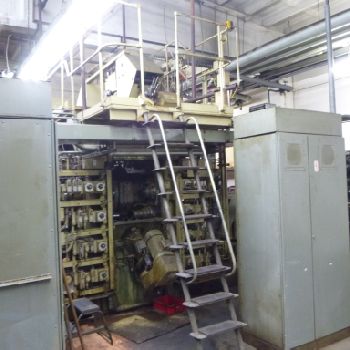

WEMA Vogtland BTrPi 900/8 Transfer Machine / Rotary Transfer Machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Rotary Transfer Machines |
| Manufacturer: | VOGTLAND |
| Model: | BTrPi 900/8 |
| Year of Make: | 1987 |

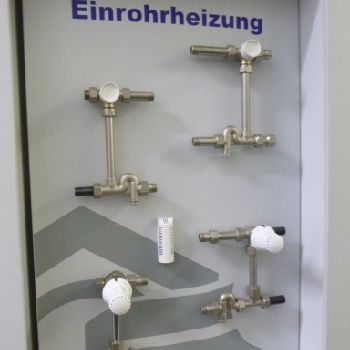

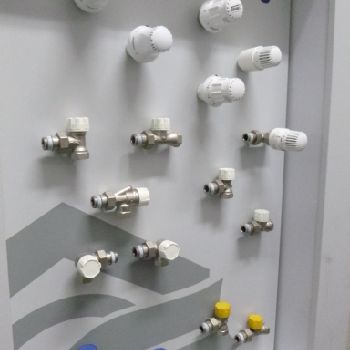

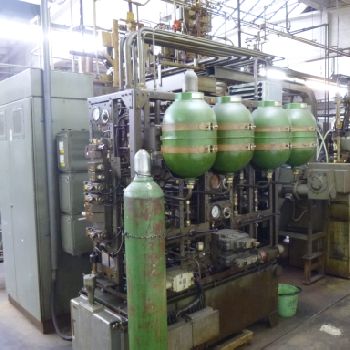

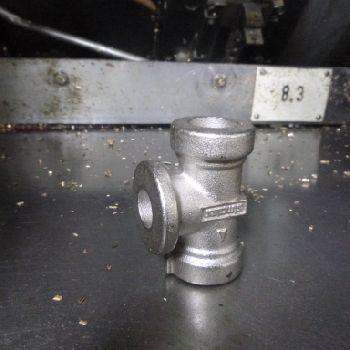

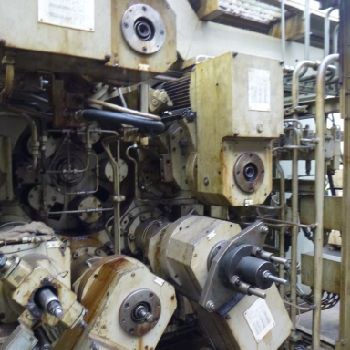

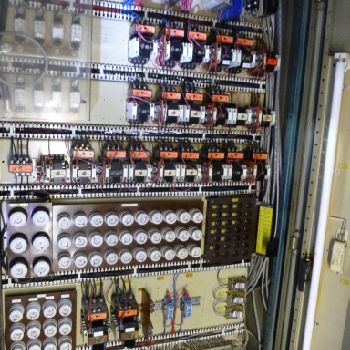

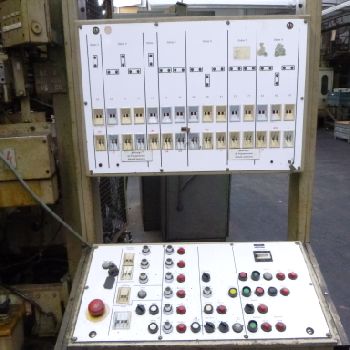

| Description: | TRANSFER MACHINE with 3 work station |for example the production of a high quantity of armatures|Other technical information about the machine: |- workpiece carrier: workpiece holding barrel 800mm for 8 work piece - clamping station, cycle time of 10 sec. |- drilling and milling unit: SK 40 intake; spindle stroke 125 mm; standard feed rate 1m/min; rapid traverse feed rate 4m/min; RPM max. 2240 rpm |- 1.Thread-cutting unit: SK 40 Intake; Quill 125 mm; quill-stroke 125mm; RPM 35.5 - 900 rpm; right/left |- 2.Thread-cutting unit: SK 40 Intake; Quill 125 mm; quill-stroke 80mm; RPM 45 - 560 rpm; right/left|Equipment: |- 2 hydraulic aggregate |- chip conveyor |- belt filter produced by Filtertechnik Gera (fleece band 430mm) |- control panel |- manual switch|Technical Details: |- number of stations: 8 pieces |- control: PS 2000 |- weight of the machine: approx. 17,0 t |- total power requirement: 83,0 kW |- dimensions of machine LxWxH: 2400x2800x2800 mm |- dimensions electric |
| Technical Specifications: | Length x width x height: 5000.0 mm × 6200.0 mm × 3800.0 mm Weight: 17000.0 kg State: good At local norms: --------- Status: visible |
