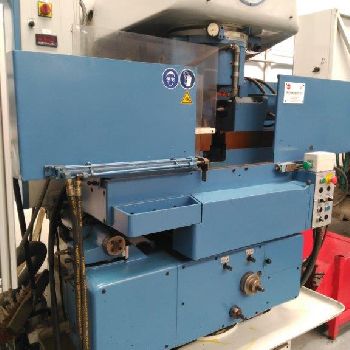

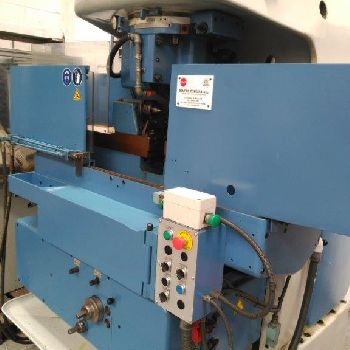

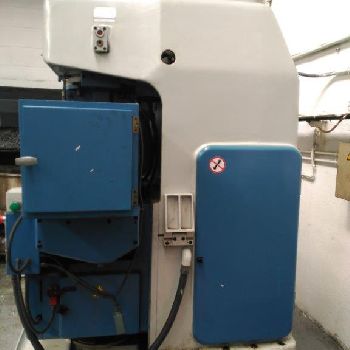

Hurth ZSA-420 gear shaving machine
$ 47,921
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Further Gear Cutting Machines |
| Manufacturer: | Hurth |
| Model: | ZSA-420 |
| Year of Make: | 1977 |
| Description: | Workpiece diameter min: 80 mm. |Workpiece diameter max: 420 mm. |Max. module: 8. |Face width parallel cycles max.: 150 mm. |Head rotation: +/- 23. |Speed of cutter spindle: 45 a 385 r.p.m. |Total power requirement: 12 kw. |Machine weight: 6200 Kg |
| Technical Specifications: | Max wheel Ø: 420.0 mm Module +: 8.0 Max. spindle speed: 385 rpm Max. gear width: 150.0 mm Motor power: 12.0 kW Length x width x height: - × - × - Weight: 6200.0 kg State: good At local norms: no |
