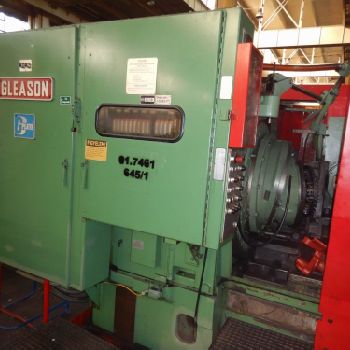

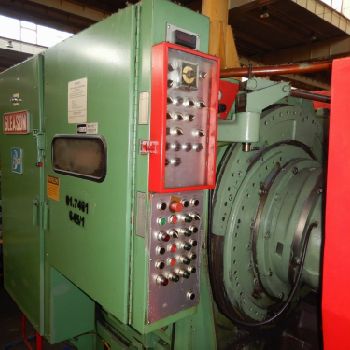

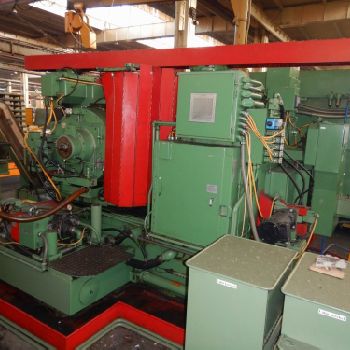

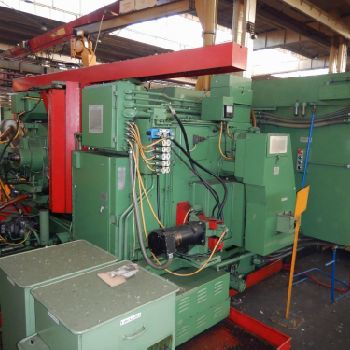

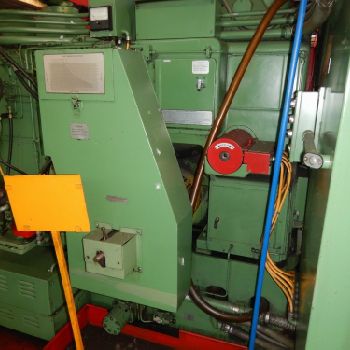

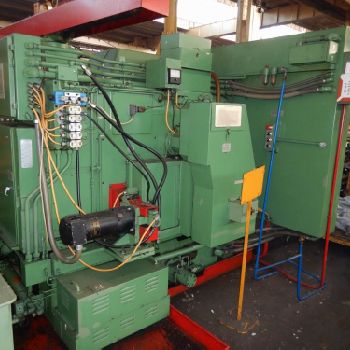

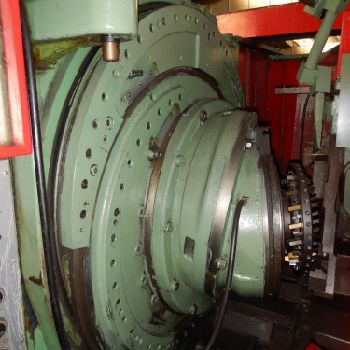

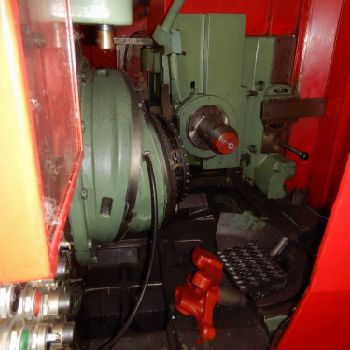

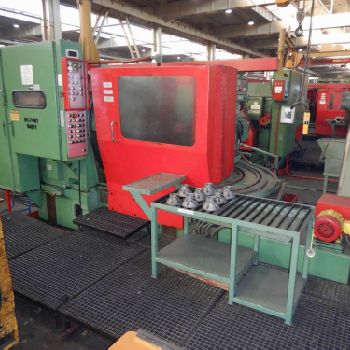

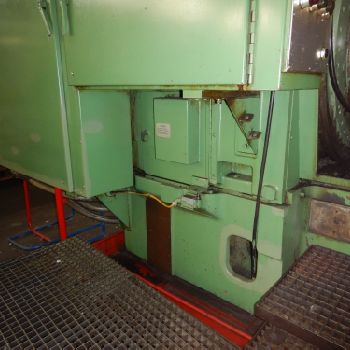

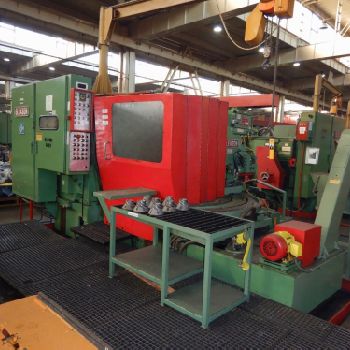

Gleason No. 645 Gear milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Category: | Further Gear Cutting Machines |
| Manufacturer: | Gleason |
| Model: | No. 645 |

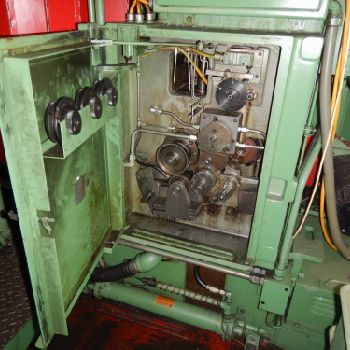

| Description: | GLEASON - No 645 - 2 pieces |- max gear diameter 745,5 mm |- max radial setting 266,7 mm |- pitch-coarsest 16,9 mod |- full dept max 31,8 mm |- max face width 116,8 mm |- index range 5-80 inclusive |- diameter of taper hole at large end 152,4 mm |- taper per foot 19,0 mm |- depth of taper 152,4 mm |- diameter of hol through spindle 127,0 mm |- cutter diameter 9, 12, 16 and 18 inches |- max offset above center 114,3 mm |- max offset bellow center 114,3 mm |- max machine center to spindle nose 596,9 mm |- cutter speeds 19-167 stepless |- feeds infinitely variable from 7 s per tooth minimum |- dimensions 4600x3000x2800 mm |- weight appr. 17,3 t |- change gears |- hydraulic unit |- cooling system |- chip conveyor |- cams |- less used condition |
| Technical Specifications: | Max wheel Ø: 745.5 mm Module +: 16.9 Length x width x height: 4600.0 mm × 3000.0 mm × 2800.0 mm Weight: 17300.0 kg State: good At local norms: --------- |
