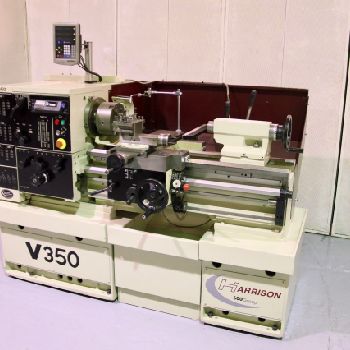

Harrison V350 x 635 lathe
$ 13,270
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Lathes |
| Manufacturer: | Harrison |
| Model: | V350 x 635 |
| Year of Make: | 2005 |
| Description: | HARRISON GAP BED CENTRE LATHE|Model V350 x 650 |Year 2005|CAPACITY |Distance between centres 650 mm |Height of centres 170 mm |Swing over bed 350 mm |Swing over cross slide 196 mm |Swing in gap 535 mm|UNIVERSAL GEARBOX |Longitudinal feeds per rev 0.036 2.4mm/rev |Cross feeds half long. feeds |English pitches (56) 2 56 tpi |Diametrical pitches (20) 8-56 DP |Metric pitches (51) 0.2 - 14 mm |Module pitches (20) 0.2-3.5 mod.|HEADSTOCK |Spindle speeds (3 ranges, infinitely variable) 17 - 3250 rpm |Main motor 7.5 kW (10HP) |Spindle nose 4 D.1 Camlock |Bore through spindle 42 mm|TAILSTOCK |Spindle diameter 63 mm |Spindle travel 145 mm |Taper of centre No. 4 Morse|Machine complete with :- |NEWALL C80-CSS 2 Axis D.R.O. |Constant surface speeds. |3-jaw chuck. |Quick change toolpost with holders. |Interlocked chuck guard. |Coolant.|CONDITION :- SUPERB!, Ex University. |
| Technical Specifications: | Length between centers: 650.0 mm Center height: 170.0 mm Turning length: 650.0 mm Turning Ø: 350.0 mm Ø above the bed: 350.0 mm Ø above transversing slide: 196.0 mm Diameter in the gap: 535.0 mm Spindle nose: 4" D.1 Camlock Spindle bore: 42.0 mm Turning speed: 3250 rpm Spindle motor power: 7.5 kW Overhauled: no Length x width x height: - × - × - Weight: - State: like new At local norms: --------- Status: under power |
