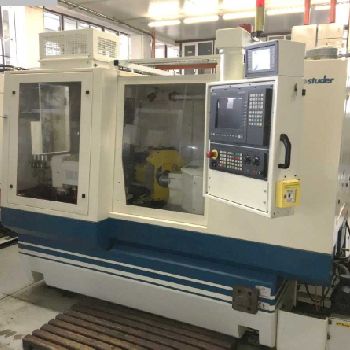

Studer S 140 CNC Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Studer |
| Model: | S 140 CNC |
| Year of Make: | 2002 |

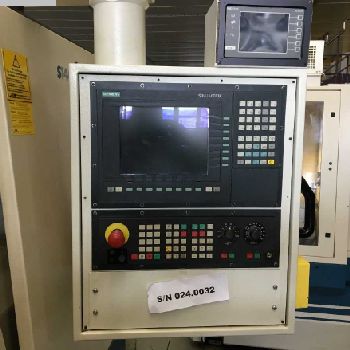

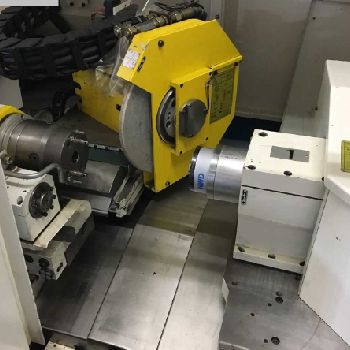

| Description: | STUDER S140 - CNC cylindrical OD + ID grinding machine|DESCRIPTION |Built in 2002 Hours 56,760|Current state Not in operation in good mechanical condition /|Conversion from Acomel to Vacon not yet completed|Missing couple of Heidenhein scales.|Max I/D grinding diameter 100 mm |Max O/D grinding diameter 120 mm |Max O/D grinding length 110 mm |Control SIEMENS 840D V2-01 |Simultaneous I/D and O/D operation |Maximum/average power requirement 56 kVa/28 kVa |Connection 50 Hz 3x 400 10Volt |Weight of the machine ca. 6,0 t |Dimensions of basic machine 2,560 x 1,810 x 2,200 |Footprint of working area. 4,810x 3,800x 2,200 mm|Coolant system: Oil |Automatic CO2 fire extinction system Total Walter K8 |Backup fire extinguishing Inert gas generators (military type) |Sensitron touching system Dittel M5000 |One spindle F 120 mm / GMN 90,000 RPM installed |Converter for I/D spindle Vacon + software purchased, to be installed by Studer. |High frequency diamond dressing dressing spindle|T |
| Technical Specifications: | Max. grinding length: 110.0 mm Grinding diameter: 120.0 mm Exter: Yes Inter: Yes CNC: Yes Type of CNC: SIEMENS 840 D Length x width x height: 2560.0 mm × 1810.0 mm × 2200.0 mm Weight: 6000.0 kg State: good At local norms: --------- Status: visible |
