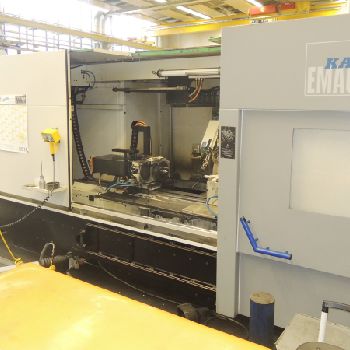

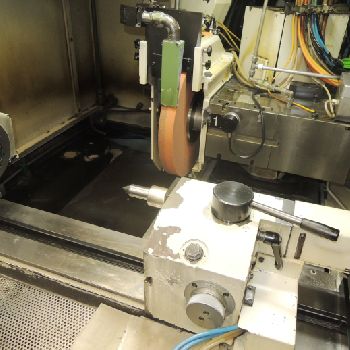

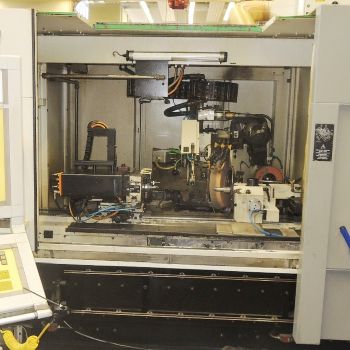

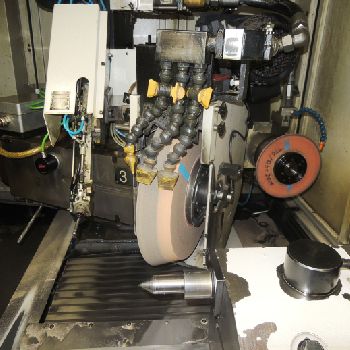

Karstens K 51-1500 Cylindrical external / internal grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Cylindrical Grinding Machines |
| Manufacturer: | Karstens |
| Model: | K 51-1500 |
| Year of Make: | 2000 |
| Description: | K A R S T E N S (Germany) |Universal CNC - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding |Model K 51 1500 |Year 2000 |Height of centres 180 mm |Distance between centres / grinding length 1,700/1.600 mm |Cylindrical Grinding: Grinding , approx. 5 - 360 mm |Grinding wheel: x width x bore 500 x 100 x 127 mm |Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm |Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW |Grinding Wheelhead: 3 Positions = B-Axis |Head swivels in 3 positions = 240 / 17,5 degree |X-axis adjustment in total 360 mm |Increments for infeed 0,001 125 mm |Workpiece wheelhead = C-Axis |Spindle speeds steplessly adjustable 10 1.000 rpm |Spindle taper / Spindle bore MK 4 / 24 mm |Table speeds 0,01 10.000 mm/min |Total electrical load 40 kW - 400 V - 50 Hz |Weight, approx. 10,000 kg |Accessories / Special Features: |* Very versatile CNC Grinding |
| Technical Specifications: | Max. grinding length: 1600.0 mm Grinding diameter: 360.0 mm Exter: No Inter: Yes CNC: Yes Type of CNC: BWO 900 C Max. wheel speed: 2200 rpm Spindle motor power: 7.5 kW Length x width x height: - × - × - Weight: 10000.0 kg State: good At local norms: --------- |
