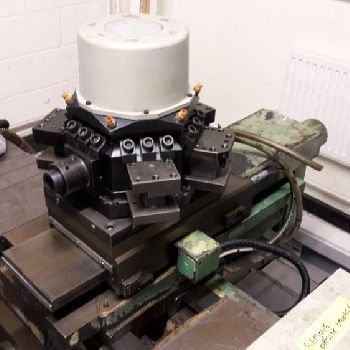

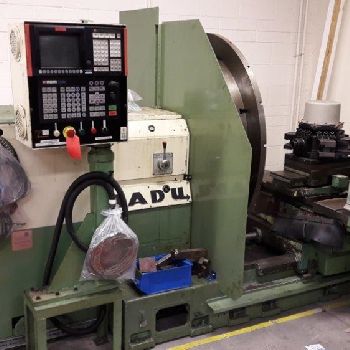

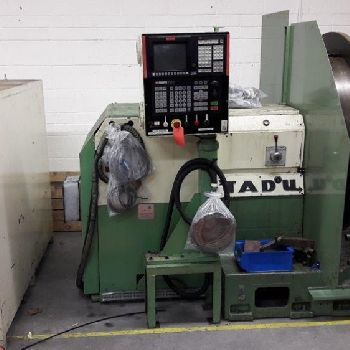

Tadu FS750 Facing lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Facing Lathes |
| Manufacturer: | TADU |
| Model: | FS750 |
| Year of Make: | 1984 |
| Description: | Swing over bed: 1450 mm |Swing over cross slide: 600 mm |Traverse: Z axis 350 mm, X Axis 700 mm. |Chuck to turret face: 680 mm |Input: 380/3/50 20 hp approx. |Spindle Speeds: 0 - 400 rpm |Feed Rate: variable |4 jaw chuck: 1200 mm |Tool post: 6 way automatic |
| Technical Specifications: | CNC: Yes Type of CNC: NUM T plus Max. diameter above the bed: 1450.0 mm Diameter above transversing slide: 600.0 mm Turning speed: 400 rpm Length x width x height: 3810.0 mm × 1930.0 mm × 1770.0 mm Weight: 6550.0 kg State: good At local norms: --------- Status: visible |
