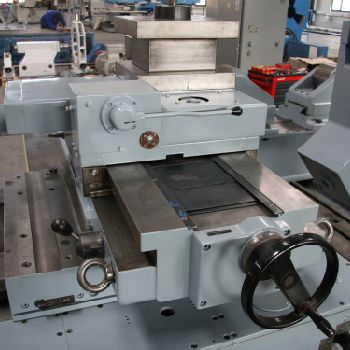

WMW DP 2-S Facing Lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Facing Lathes |
| Manufacturer: | WMW Zerbst |
| Model: | DP 2-S |
| Year of Make: | 2018 |
| Description: | The machine will be modernized. (electric, electric cabinet, main drive with frequency converter stepless adjustable and 4 axis digital readout system). |axis travel support stand: |- bed slide 1700mm (longitudinal) |- intermediate slider 780mm |- cross slider 640mm |- upper slider 120mm|equipment: |- 1x steady rest dia.740mm |- 1x roll attachment |- 1x grinding device |- 1x four times turning tool holder |- 1x tailstock (can be moved electric) |- 4x floor plates|Turning length of 4000mm via repositioning possible!|Further Technical Details: |- faceplate diameter: 2000 mm |- turning diameter over support: 2000 mm |- turning length: 2340 mm |- center height: 1250 mm |- spindle bore: 98 mm |- max. workpiece weight between centres: 16000 kg |- workpiece weight: 3,8t at 50mm distance |- workpiece weight: 2,0t at 600mm distance |- total power requirement: 65 kW |- weight of the machine: approx. 36 t |- space requirement approx.: variable m |
| Technical Specifications: | Max. turning length: 4000.0 mm Max. turning diameter: 2000.0 mm Max. diameter above the bed: 2000.0 mm Faceplate diameter: 2000.0 mm Max workpiece weight: 16000.0 kg Spindle bore: 98.0 mm Spindle motor power: 65.0 kW Length x width x height: - × - × - Weight: 36000.0 kg State: revised At local norms: --------- Status: being refitted |
