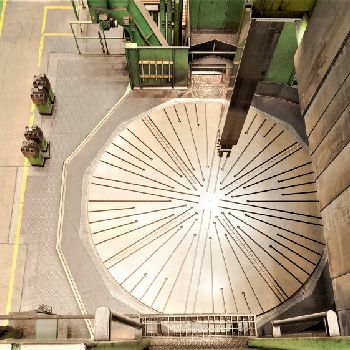

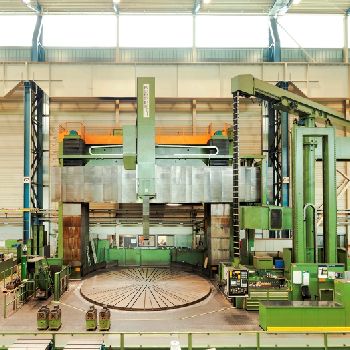

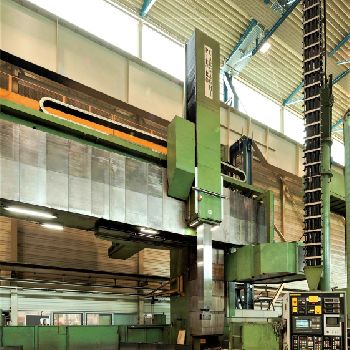

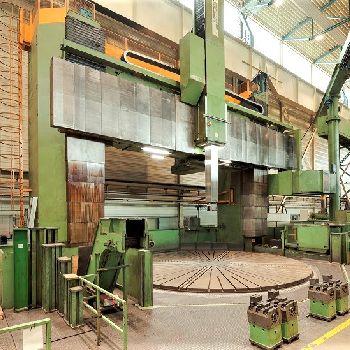

Used Pietro Carnaghi AP80TM Floor type boring machine CNC
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Floor Type Boring Mills |
| Manufacturer: | Pietro Carnaghi |
| Model: | AP80TM |
| Year of Make: | 2002 |
| Description: | Technical data:|Year: 2002|CNC: SIEMENS 840|Turning capacity.|Max. swing diameter: 8500 mm |Max. turn diameter: 8000 mm |Max. Turn height: 6550 mm|Chuck:|Diameter 8000 mm |Max. load 200 T |Chuck Speed 1-42 rpm |Main motor power 100 Kw|Ram on cross-rail:|Vertical Ram stroke 3200 mm |Ram section 400x400 mm |Milling spindle 60 Kw |Milling spindle raper ISO 50 |Milling spindle speed max 2000 RPM|Cross-rail: |Vertical stroke 4800 mm|Foot-print + height 23 x 13 x 12.4 m |Total weight approx. 300 T|Eqipped with:|C axis to face-plate |A axis Swivel milling head ISO 50 |U axis D’Andrea type facing head |Automatic Head changer |Automatic Tool changer |Sony video camera for work area |Swarf conveyor, Coolant |
| Technical Specifications: | CNC: SIEMENS 840 X travel: 8500.0 mm Z travel: 6550.0 mm Table length: 8000.0 mm Max. workpiece weight: 200000.0 kg Spindle taper: ISO 50 Max. spindle speed: 42 rpm Spindle motor power: 100.0 kW Overhauled: yes Year of overhauling: 2002.0 Length x width x height: - × - × - Weight: - State: excellent At local norms: --------- Status: visible |
