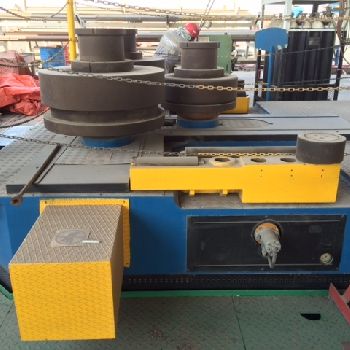

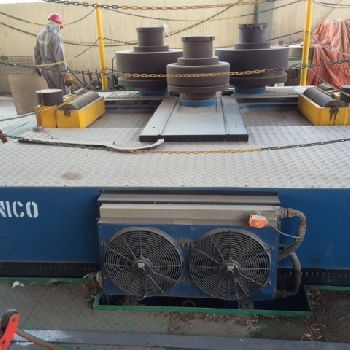

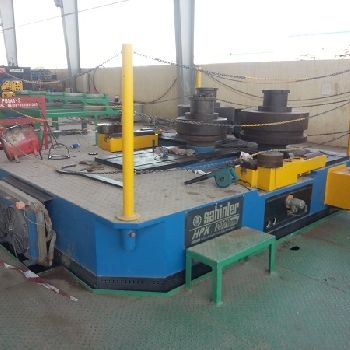

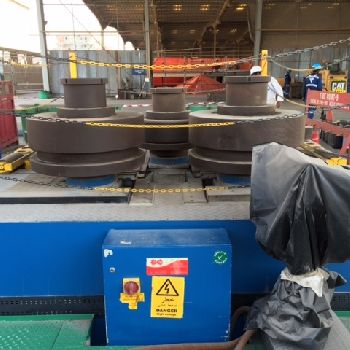

SAHINLER HPK200 MARINE Profile bending machine
$ 113,035
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Profile Bending Machines |
| Manufacturer: | Sahinler |
| Model: | HPK200 MARINE |
| Year of Make: | 2010 |
| Description: | Capacity With Appropriate Rolls |Angles (Leg-Out) 200mm x 200mm x 20mm |Angles (Leg-In) 200mm x 200mm x 18mm |"T Section (Leg-Out) 200mm x 200mm x 20mm |T Section (Leg-In) 200mm x 200mm x 20mm |Rounds 120mm. Min Diameter 3000mm |Tubes 150mm Dia x 9mm Wall Thickness. Min Dia 4000mm |Square 120mm x 120mm |Flats On Edge 350mm x 80mm |Flats on Flat 200mm x 50mm |Input 30 kW |Shaft Diameter 200mm |Bending speed 1.5/3 Metres Per Minute |Roll Diameter 900mm |Actuated via Free Standing Control Console |Fitted with 2 x Guide Rolls |Features Hydraulic Adjustments to all 3 Rolls |Length Machine Base 3760mm / 12’4 |Width Machine Base 3000mm / 9’10 |Nett weight actual 31 ton / 33,236 kgs, Main Machine Base Weighs 15.3 tons / 15,558kgs |
| Technical Specifications: | Nbr of rolls: 3.0 Square frame capacity: 120.0 mm Type: Horizontal CNC: no CNC type: - Nbr of power driven rolls: 3.0 Standard steel rectangular frame capacity: 200.0 mm Standard steel round frame capacity: 120.0 mm Standard steel L frame capacity: 200.0 mm Standard steel U frame capacity: 150.0 mm Standard steel T frame capacity: 200.0 mm Standard steel I frame capacity: 200.0 mm Length x width x height: 3760.0 mm × 3000.0 mm × - Weight: 33236.0 kg State: good At local norms: --------- Status: visible |
