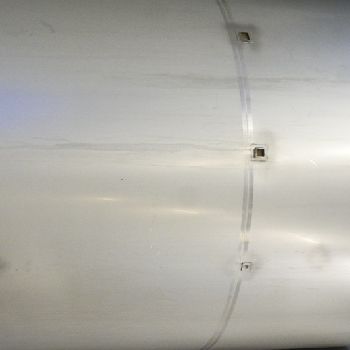

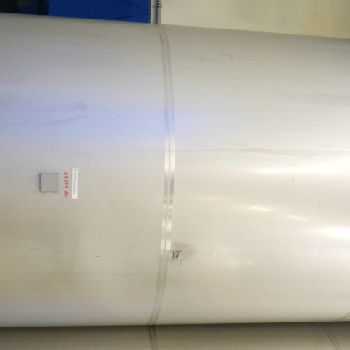

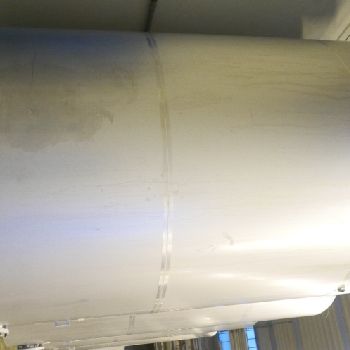

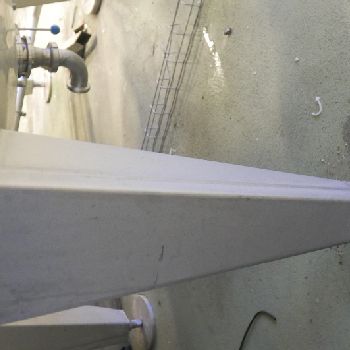

GEA Vorspülwassertank
$ 19,365
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Further Equipment |
| Manufacturer: | GEA |
| Model: | Vorspülwassertank |
| Year of Make: | 2000 |

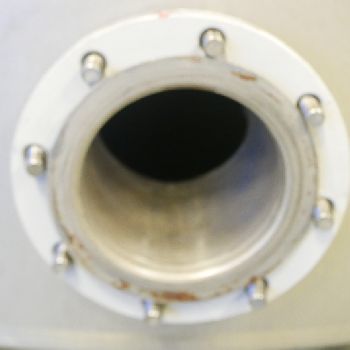

| Description: | UNI-ROOF|Measures and weight: |Total height: 5600 mm |Cyl. Height: 4200 mm |Diameter: outside 2800 mm, with flange 2900 mm |Weight: 2100 kg|Wall thickness: |Underbody 4 mm, cylinder 3 / 2.5 mm, topsoil 3 mm |Insulation wall thickness: floor and roof 2.5 mm, cylinder 2 mm|Surface: |2B = IIIC|Upper floor: |- Central with conical lid |- With manhole DN 500 |- With sleeve "for level indicator |- With 2 crane eyelets |- with pipe socket DN 50 |- With inlet nozzle DN 150 |- With central spigot DN 50 |- with cone bottom|Cylinder base: |- With 10 cm insulation |- With 200 mm flange connection, 8 screws|Underbody: |- With residual spout DN 65 |- with sleeve |- With 4 calotte feet |- With overflow spout DN 200 |- with cone bottom |
| Technical Specifications: | Length x width x height: 2900.0 mm × 2900.0 mm × 5600.0 mm Weight: 2100.0 kg State: good At local norms: --------- Status: visible |
