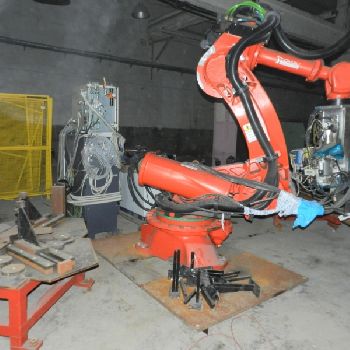

Comau Smart NH3-210-3.1-SH Industrial robot
$ 10,884
| Type: | Buy-It-Now |
| Location: | Lithuania |
| Category: | Robots |
| Manufacturer: | Comau |
| Model: | Smart NH3-210-3.1-SH |
| Year of Make: | 2008 |

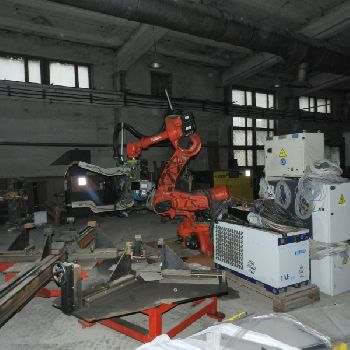

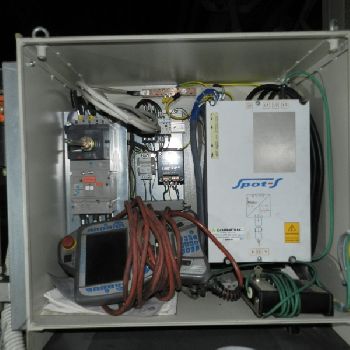

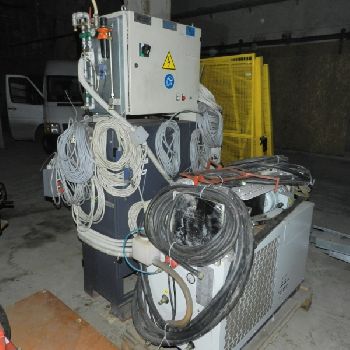

| Description: | TECHNICAL DETAILS |Manufactured by Comau (Italy) |Year of manufacture 2008 |Control: C4G |Axes: 6 |Load at wrist, kg 210 |Additional load on forearm, kg 50 |Max. horizontal reach, mm 3150 |Axis 1 motion, degrees 180 |Axis 1 speed, /s 85 (3.14 rad/s) |Axis 2 motion, degrees +160 - 30 |Axis 2 speed, /s 75 (2.79 rad/s) |Axis 3 motion, degrees +110 - 170 |Axis 3 speed, /s 90 (1.92 rad/s) |Axis 4 motion, degrees 2700 |Axis 4 speed, /s 150 (47.12 rad/s) |Axis 5 motion, degrees 125 |Axis 5 speed, /s 130 (2.18 rad/s) |Axis 6 motion, degrees 2700 |Axis 6 speed, /s 200 (47.12 rad/s) |Repeatability, mm 0,15 |Robot weight, kg 2250 |Tool coupling flange: ISO 9409-1-A160 |Motors: AC brushless |Position measurement system: with encoder |Balancing: Axis 2 - spring |Total power, kVA/A 12/18,5|Industrial robot COMAU Smart NH3-210-3.1-SH has 6 working axes. It is equipped with automatic spot welding device and 3 work tables. |It has capacity of 210 kg, so could be perfectly use |
| Technical Specifications: | Application type: Other Number of axis: 6.0 Reach in mm: 3150.0 mm Payload in kgs: 210.0 kg Control type: C4G Length x width x height: - × - × - Weight: 2250.0 kg State: good At local norms: yes |
