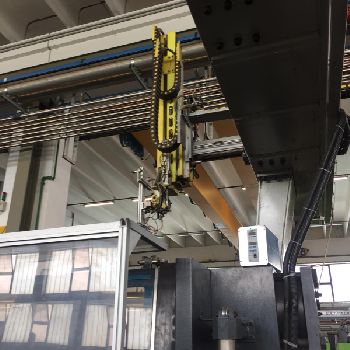

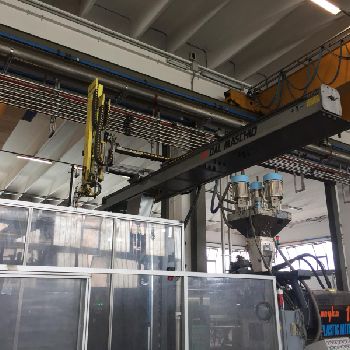

Dal Maschio Srl 3E 2400 Industrial robot
$ 13,756
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Robots |
| Manufacturer: | Dal Maschio |
| Model: | 3E 2400 |
| Year of Make: | 2003 |

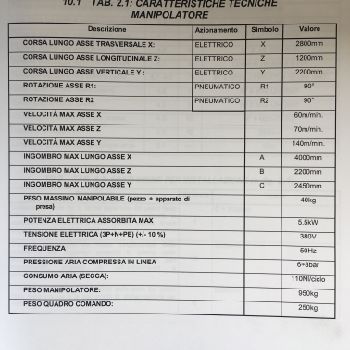

| Description: | Cartesian axis manipulator Dal Maschio mod. 3E 2400 (Cartesian robot), fully functional.|Equipped with: |- nr. 2 vacuum generators |- nr. 2 vacuum controls |- nr. 1 gripper-gripper movement |- nr. 1 feed-picker clamp control |- nr. 2 pneumatic palm rotations.|Technical features: |- travel along transversal axis X: 2800 mm |- travel along transversal axis Z: 1200 mm |- travel along transversal axis Y: 2200 mm |- rotation of axis R1: 90 |- R2 axis rotation: 90 |- max X axis speed: 60 m / min |- max axis Z speed: 70 m / min |- max Y axis speed: 140 m / min |- max footprint along X axis: 4000 mm |- max footprint along Z axis: 2200 mm |- max footprint along Y axis: 2450 mm |- max manipulable weight: 40.00 kg |- electrical power consumption: 5.5 kW |- compressed air pressure in line: 6-8 bar.|Available: |- instruction manual for use and maintenance |- CE conformity.|It is possible to view it at our headquarters in Borso del Grappa (TV). |
| Technical Specifications: | Application type: Handling Number of axis: 3.0 Reach in mm: 2800.0 mm Payload in kgs: 40.0 kg Treated against heat: Yes Treated for Clean room: No Length x width x height: 4000.0 mm × 2200.0 mm × 2450.0 mm Weight: 950.0 kg Worked hours: 30000 hours Hours under power: 50000 hours State: good At local norms: yes Status: visible but unplugged |
