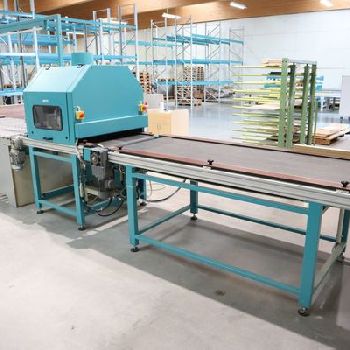

Langzauner RBM-1500/4 Brushing machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Profile Grinding Machines |
| Manufacturer: | Langzauner |
| Model: | RBM-1500/4 |
| Year of Make: | 2007 |

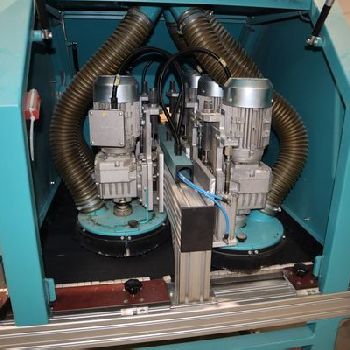

| Description: | The RBM-1500 is a powerful fully automatic machine for cleaning the backs of 3D furniture fronts. The automatic size recognition of the furniture fronts makes it possible to adapt the machine to constantly changing loads without any loss of time in a continuous process, whereby the glue residue on the backside is removed and thereby achieves optimum edge quality.|Through the use of a controlled brush unit (automatic height adjustment 15mm-38mm), the back side of the 3D furniture front and the workpiece longitudinal edges are processed in one pass, thus achieving a processing speed of 2000 parts per 8 hours (rectangular parts). |Furniture fronts of 15mm - 38mm thickness, are cleaned by the automatic height adjustment in the flow.|The machine is equipped with 5 pneumatically controlled brush units. |The contact pressure is infinitely adjustable. Each brush unit has a circular brush with a 260 mm and its own suction device (360 ). The individual extractors are combined in the machine t |
| Technical Specifications: | Number of brushes: 5.0 Max working width: 650.0 mm Max working thickness: 38.0 mm Length x width x height: - × - × - Weight: - State: good At local norms: yes Status: visible |
