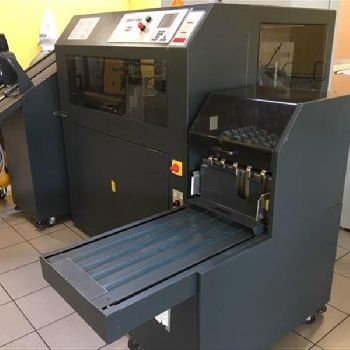

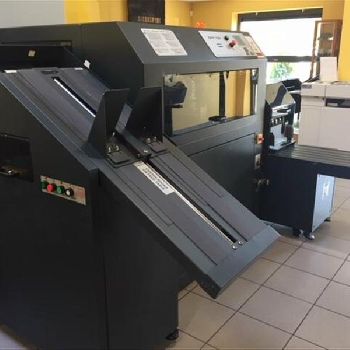

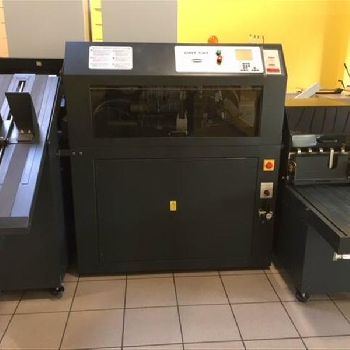

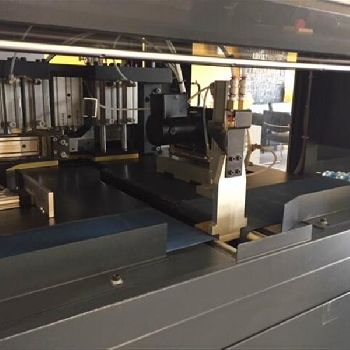

CHALLENGE CMC-130 Three knife trimmer
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Belgium |
| Category: | Cutting Machines |
| Manufacturer: | Challenger |
| Model: | CMC-130 |
| Year of Make: | 2010 |
| Description: | Maximum speed single book mode : 200 books/hour|Maximum speed multiple book mode : 500 books/hour|Maximum book thickness : 50,8 mm (2.00 in)|Input|Minimum book size (In-Line mode) : 178 x 171 mm (7.00 x 6.73 in)|Maximum book size : 330 x 241 mm (13 x 9.48 in)|Output|Minimum book size : 148 x 102 mm (5.82 x 4.01 in)|Maximum book size : 305 x 229 mm (12.01 x 9.01 in)|Trim|Minimum (all sides) : 2,5 mm (0.09 in)|Maximum Top : 152 mm (5.98 in)|Maximum Bottom : 89 mm (3.50 in)|Maximum Face : 140 mm (5.51 in)|Physical|Dimensions (L x W x H) : 145 x 132 x 152 cm (57.08 x 51.96 x 59.84 in)|Weight : 680 kg (1,500 lbs)|Electrical|Power supply-208/230V 10%, 60Hz, 3 phase, 20A|230V 10%, 50Hz, 3 phase, 20A|380/415V 10%, 50Hz, 3 phase, 15A|Air supply|Compressed air requirements-90 PSI / 5.8 BAR regulated, dry, non-lubricated compressed air at a minimum of 6 CFM / 170 LPM|Minimum air quality rating requirements-ISO 8573.1 Class 2.4.2 (solids < 1 micron, pressure dew point < 38F @100psig, and oil |
| Technical Specifications: | Max. untrimmed length: 330.0 mm Max. untrimmed width: 241.0 mm Min. untrimmed length: 101.6 mm Min. untrimmed width: 152.4 mm Max. trimmed length: 152.0 mm Max. trimmed width: 140.0 mm Min. trimmed length: 2.5 mm Min. trimmed width: 2.5 mm Set of knives: 1.0 Length x width x height: 1450.0 mm × 1320.0 mm × 1520.0 mm Weight: 680.0 kg State: good At local norms: yes Status: visible |
