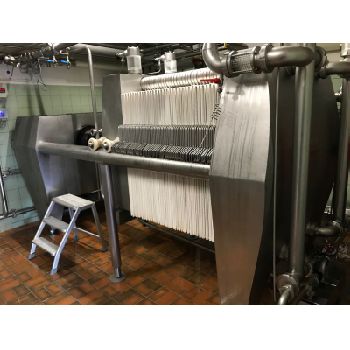

Schenk Niro 1000 Plate filter
$ 59,250
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Brewery and Beverage Machines |
| Manufacturer: | SCHENK |
| Model: | Niro 1000 |
| Year of Make: | 1996 |

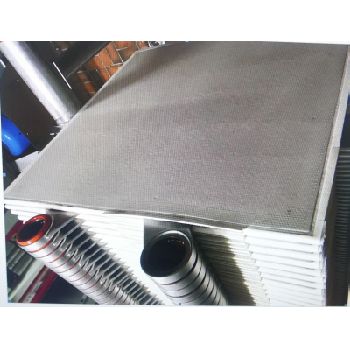

| Description: | Plate filter Schenk Type Niro 1000 |Capacity: 10.000 Liter/h for beer |Year of construction 1996 |Oper. Pressure: 8 bar |Oper. Temperature: 115 C |Operating instructions available! |with 70 Stainless steel plates |hydraulic contact pressure |with spar support |with sight glass fittings |with pressure fittings |with manometer |with Input / output valves |with vent valve |with Flow meter v. Sigrist|Electrical |Protection: IP 54 |Voltage: 230/400 V 50Hz |Power: 1,5 kW|Filter connections: |Filtrate inlet: threaded connector DN 80/100 |DIN 11851, material 1.4301 |Filtrate-outlet: threaded connector DN 80/100 |DIN 11851, material 1.4301 |Emptying: DN 40 DIN 11851 threadmaterial 4.4301 |Vent: angle valve R1/4-DN8; material 1.4571 / PTFE |Filter plates: |Dimensions of normal chambers and trub frames: |Width: 990 (1100) mm |Height: 990 (1190) mm |Depth: 9/40 mm|Layers dimension: |1000 x 1000 mm / 1000 x 2000 mm |Hydraulic contact pressure |Maximum operating pres |
| Technical Specifications: | Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: visible |
