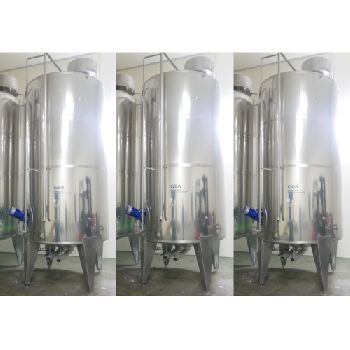

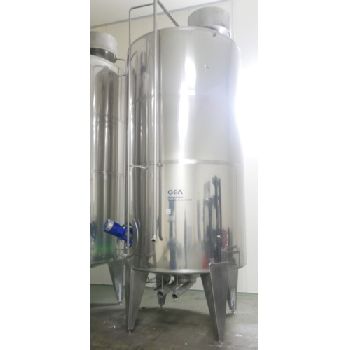

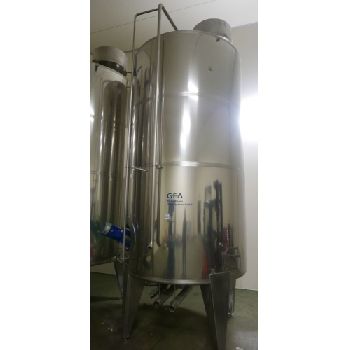

GEA-Tuchenhagen 11,200 litres storage tanks / agitator tanks, universal tanks for juice, milk, water
$ 12,183
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Boilers |
| Manufacturer: | Tuchenhagen |
| Model: | Unkown |
| Year of Make: | 2004 |

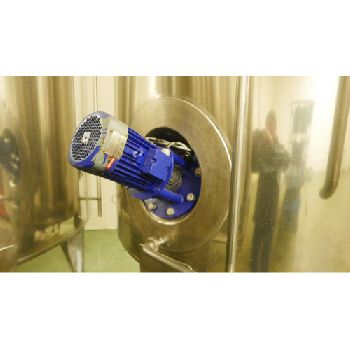

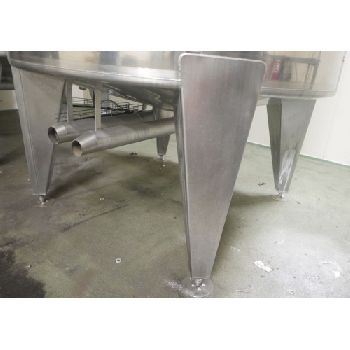

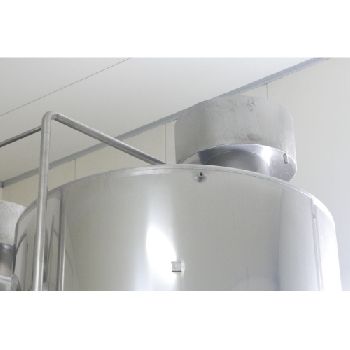

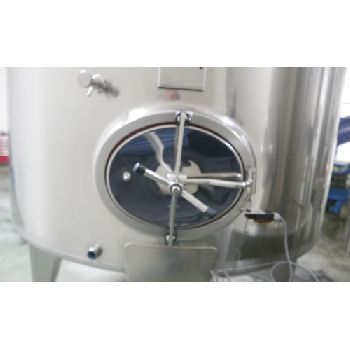

| Description: | Year of construction: 2004|Measures and weight:|Total height: 5300 mm|Cyl. Height: 2000 mm|Diameter: 2000 mm inside, 2400 mm outside|Weight: kg|Material:|V2A - AISI 304, 1.4404|Surface:|Outside, inside IIID|Upper floor:|- with large ventilation dome, D =, with condensate drain|- centralized with CIP pipe DN 50|- with CIP pipe DN 25 for agitator|- central with flat cone cover|Cylinder base:|- with Stelzer agitator mixer laterally, motor 1.3 kW|- with manhole 330 x 430 mm|- with test cock DN 20|- with threaded connection DN 20, laterally under manhole|- with 2 sleeves for level indication|Underbody:|- with 4 feet with calotte, height adjustable|- with central spout DN 50 with bottom beading central|- with central spout DN 65 with bottom beading central|Attention: Remaining outlet must be welded back to the manhole. |
| Technical Specifications: | Capacity: 11200 L Max t°: 85.0 °C Double jacketed: no With agitator: no Length x width x height: - × - × 5300.0 mm Weight: - State: good At local norms: --------- Status: visible |
