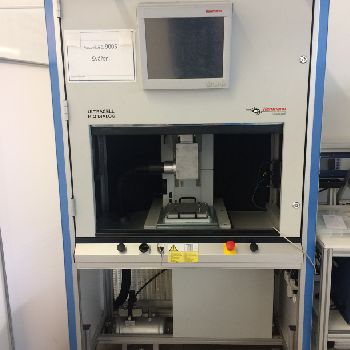

Herrmann Ultracell HiO Dialog Welding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Welding Machines |
| Manufacturer: | Hermann |
| Model: | Ultracell HiO Dialog |
| Year of Make: | 2016 |
| Description: | Type: Ultracell HiO Dialog |Producer: Herrmann |Created: 2016 |parameters: |Plastics weld with ultrasound |Generator power [W] 2400/4800/6200 |Welding force min./max. [N] at 8 bar 30/2490 |Working stroke [mm] 150 |External dimensions (W x H x D) [mm] at max. Height adjustment: |723/1533/707 |Machine overhang to center of sonotrode [mm] 260 |Height adjustment [mm] 430 |HMI device: 15 touchscreen color |Operating modes: 7 |Weldment Memories: 1000 |Number of stored welds (value control) 300 per memory |Activation of additional functions (optional) max. 6 |External suction |Without ultrasonic sonotrodes |
| Technical Specifications: | Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: under power |
