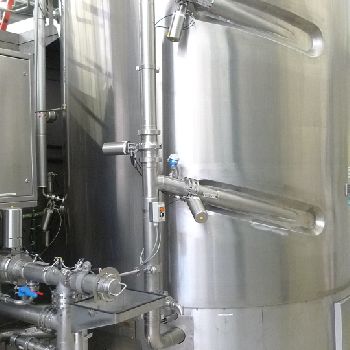

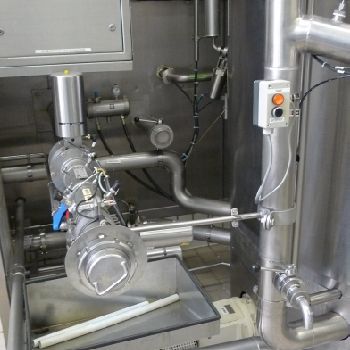

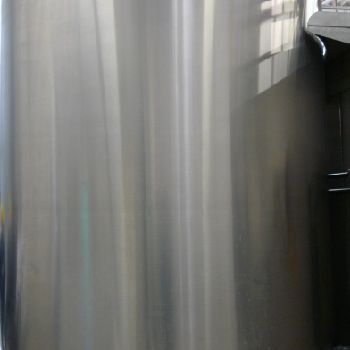

Schwarz VP 180/13320 Vacuum processing system for cosmetics and food machinery
$ 295,408
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Food Accessories |
| Manufacturer: | SCHWARZ |
| Model: | VP 180/13320 |
| Year of Make: | 1999 |
| Description: | DISHO KORUMA VP 180/13320 Vacuum processing system for cosmetics and food|Pressure and stirring tank |Ges.Inhalt: 13,320 liters - Net capacity: 10,000 liters |Manufacturer: Black |Year of construction: 1999|Material: |Dished bottom and coat: 1.4539 |Block flange for agitator, outlet pot and sleeve for temperature sensor: 1.4539 |Manhole and other. Neck: 1.4571 |Insulating jacket and tube feet: 1.4301 (V2A) |Attachments: 1.4404 / 1.4571 |Seals: Viton|Execution: |Standing, cylindrical, 2-walled design with dished bottom welded on both sides |Inner diameter: 2500 mm |Outer diameter: 2650 mm |Cyl length: 2000 mm |Total length without agitator: approx. 4000 mm |Underfloor are 4 reinforcing plates, to which pipe feet are fixed with bottom plates.|The cylindrical shell and the lower dished bottom are surrounded by a splash-proof welded insulating jacket, which is filled with approx. 75 mm mineral wool.|In the upper dished bottom: |1 hinged manhole DN 500, closable with tension |
| Technical Specifications: | Length x width x height: - × - × - Weight: - State: excellent At local norms: --------- Status: visible |
