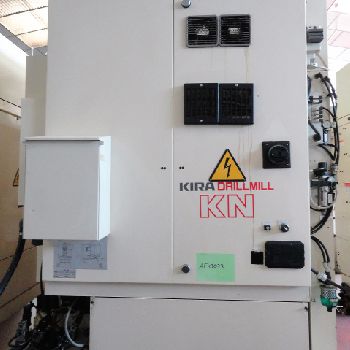

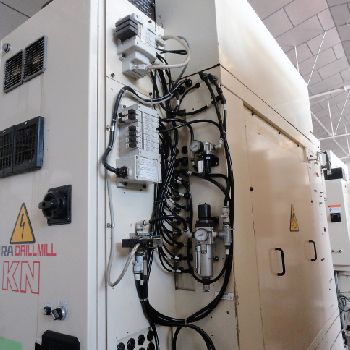

Kira KN-6VS-300S Machining center - vertical
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Vertical Machining Centers |
| Manufacturer: | Kira |
| Model: | KN-6VS-300S |
| Description: | Travel |X axis 300 mm. |Y axis 250 mm. |Z axis 300 mm. |From the center of the head to the surface of the column 365 mm.|Table |Work area 500 X 350 mm. |Max allowed load 500 kg.|Head Spindle speed |Baja 120 |Media 240 |High 300|Feeding |Fast crossing 24,000 mm. / min. |Cutting feed 1 ~ 10,000 mm. / min|ATC |No tools 6 |Diameter max. of the tool 100 mm. |Max. of the tool 250 mm. |Max weight of the tool 3 kg. |Random tool selection |Tool change time (from T to T) 1 s |Tool change time (from C to C) 3.5 s|Engine |3.7Kw AC head motor. (15 min.) / 2.2Kw. (Cont.) |Shaft motor AC 0.75Kw. (X, Y) /AC1.0Kw. (Z)|Supplies |Power supply AC200 / 220V 10%, 50/60 Hz, 9 KVA |Air supply 0.4MPa (4Kg./cm2), 100 L / min.|Dimensions of the machine |Height 2,365 mm. |Space at the base 1350 X 2350 mm. |Weight approx. 2,200 Kg.|Accuracy |Positioning 0.01 mm. (All the way) |Copiability 0.003 mm.|Cutting capacity |Drill |Under 23 mm. |Medium 18 mm. |Height 13 mm. |Knock |Under |
| Technical Specifications: | Axis X: 300.0 mm Axis Y: 2500.0 mm Axis Z: 300.0 mm Rotary table (4th axis): no Type of CNC: Fapuc Table length: 500.0 mm Table width: 350.0 mm Max. part weight: 500.0 kg Number of tool pockets: 6.0 Max. spindle speed: 10000 rpm Spindle motor power: 3.7 kW Length x width x height: 1350.0 mm × 2350.0 mm × 2365.0 mm Weight: 2200.0 kg State: good At local norms: --------- |
